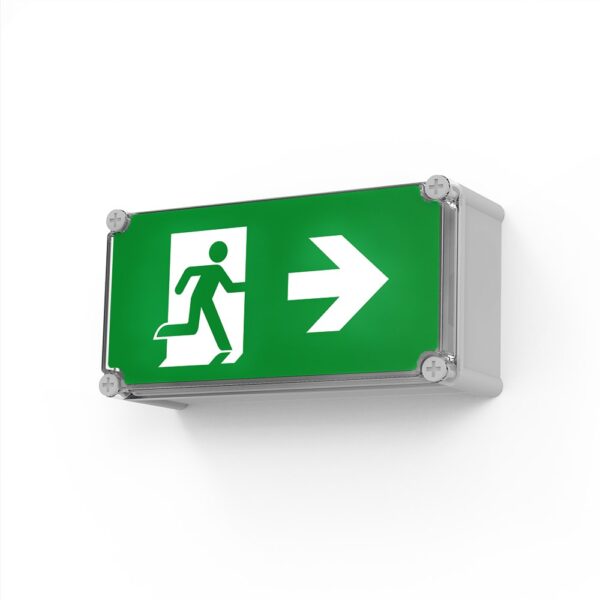

Boxit Pro IP65 Wallmount Exit Light | 40M Viewing Distance | IK08 Impact Resistance | Polycarbonate Body | by Ektor
The Boxit Pro IP65 Wallmount Exit Light is designed for reliable emergency exit signage, featuring a 40M viewing distance and IK08 impact resistance. Ideal for commercial and industrial applications, this durable light ensures safety with a maintained emergency mode lasting 90 minutes, making it perfect for both indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP65 Exit Sign, Wall Mounted Emergency Exit Light, DALI Emergency Exit Sign, Outdoor Exit Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Standby Power: 2.5 W
- Maximum Wattage: 3.5 W
- Driver Type: DALI DT1 Emergency
- Wiring Type: Re-wireable terminal block (5 pin)
- Emergency Mode: Maintained
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 30 lm
- Viewing Distance: 40 m
- Replacement Battery Code: 01303
- Product Design Life: 12 years with 24-hour daily use
- Dimensions (H x L x W): 170mm x 80mm x 360mm
- Weight: 1.2 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK08 impact resistance rating
- Polycarbonate body and diffuser for durability
- Surface mount installation
- DALI DT1 Emergency driver type
- Maintained emergency mode with 90 minutes duration
- Viewing distance of 40 meters
- Low standby power consumption of 2.5 W
- Maximum wattage of 3.5 W
- Replacement battery code 01303
- Product design life of 12 years with 24-hour daily use
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings emergency exit signage
- Industrial facilities requiring durable exit lighting
- Outdoor and indoor surface mount exit lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Long product design life minimizes waste and replacement frequency
Warranty Information
8 years return to base (RTB) commercial use warranty.
Available Now
The Boxit Pro IP65 Wallmount Exit Light - 40M by Ektor is available for immediate purchase, ideal for commercial and industrial emergency exit lighting applications.
