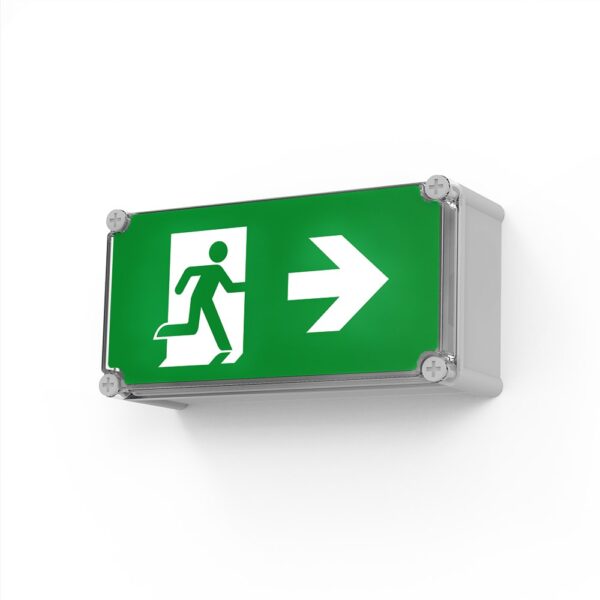

Boxit Pro IP65 Wallmount Exit Light | 90 Min Emergency Duration | IK08 Impact Resistance | Grey Polycarbonate | by Ektor
The Boxit Pro IP65 Wallmount Exit Light is designed for reliable emergency exit signage in commercial and industrial settings. With an impressive 90-minute emergency duration and IK08 impact resistance, this light ensures safety and visibility. Its durable grey polycarbonate body is perfect for both indoor and outdoor installations, making it an ideal choice for public spaces requiring dependable emergency lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP65 Emergency Exit Sign, Wall Mounted Exit Light, Weatherproof Exit Sign, Emergency Exit LED Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK08 (24M model), IK09 (40M model)
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (216Vac - 253Vac range in Australia)
- Maximum Wattage: 3.5 W
- Standby Power: 2.2 W (24M model)
- Driver Type: DALI DT1 Emergency
- Wiring Type: Re-wireable terminal block (5 pin)
- Emergency Mode: Maintained
- Emergency Output Power: 1200 mW (24M model)
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 30 lm
- Viewing Distance: 24 meters
- Product Design Life: 12 years
- Daily Use: 24 hours
- Dimensions (H x L x W): 170mm x 80mm x 360mm
- Weight: 1.2 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK08/IK09 impact resistance
- Polycarbonate body and diffuser for durability
- Surface mount installation
- DALI DT1 Emergency driver type
- Maintained emergency mode with 90 minutes duration
- Viewing distance of 24 meters
- Low standby power consumption
- Replacement battery available
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings
- Industrial facilities
- Public spaces requiring emergency exit signage
- Outdoor and indoor wall mount installations
Standards & Compliance
- AS/NZS 60598.1
- AS 60598.2.22
- AS/NZS 2293.3
- AS CISPR 15
Environmental Benefits
- Low power consumption reduces energy usage
- Long product design life of 12 years minimizes waste
- LED technology for energy-efficient lighting
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Boxit Pro IP65 Wallmount Exit Light - 24M is available now for immediate purchase. Ideal for commercial and industrial emergency exit signage applications.
