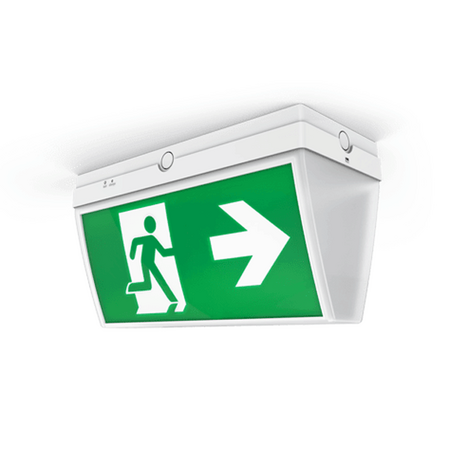

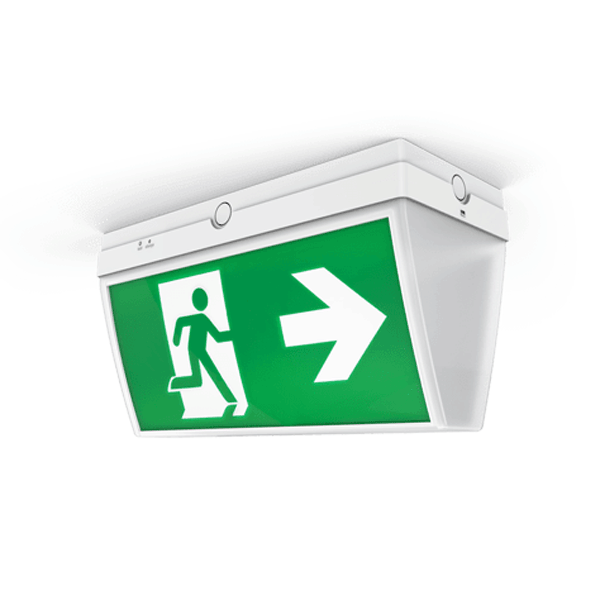

Boxit Wall Mounted Exit Sign | Maintained Emergency Mode | 90 Minutes Duration | IP20 Rated | by Ektor
The Boxit Wall Mounted Exit Sign is designed for reliable emergency exit signage in commercial and public spaces. Featuring a maintained emergency mode with a 90-minute duration and a viewing distance of 24 meters, this sign ensures safety compliance in workplaces and public facilities. Built with a durable polycarbonate body and PMMA diffuser, it’s perfect for any environment requiring clear exit indications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, Wall Mounted Exit Light, Maintained Emergency Exit Sign, Safety Exit Sign
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 3.6 W
- Standby Power: 3.3 W
- LED Wattage: 0.95 W
- Driver Type: Fixed output, integrated
- Dimmable: No
- Emergency Mode: Maintained
- Emergency Output Power: 950 mW
- Emergency Duration: 90 minutes
- Viewing Distance: 24 meters
- Wiring Type: Re-wireable terminal block (4 pin)
- Replacement Battery Code: 01307
- Product Design Life: 6 years
- Dimensions (H x L x W): 150mm x 80mm x 340mm
- Weight: 1.5 kg
Key Features
- Maintained emergency mode with 90 minutes duration
- Viewing distance of 24 meters
- Fixed output integrated driver included
- Re-wireable terminal block (4 pin) for easy installation
- Polycarbonate body with PMMA diffuser
- White fitting colour with IP20 rating
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with emergency lighting standards and safety regulations.
Applications
- Commercial buildings emergency exit signage
- Public facilities requiring maintained emergency lighting
- Workplaces and offices for safety compliance
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting
- AS/NZS 61347.1 – Lamp Control Gear
- AS/NZS 61347.2.13 – Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 3.6W maximum wattage
- Long product design life of 6 years reduces waste and replacement frequency
Warranty Information
5 years return to base (RTB) warranty for commercial use.
Available Now
The Ektor Boxit Wall Mounted Exit Sign is available for immediate purchase, ideal for commercial and public building emergency safety compliance.
