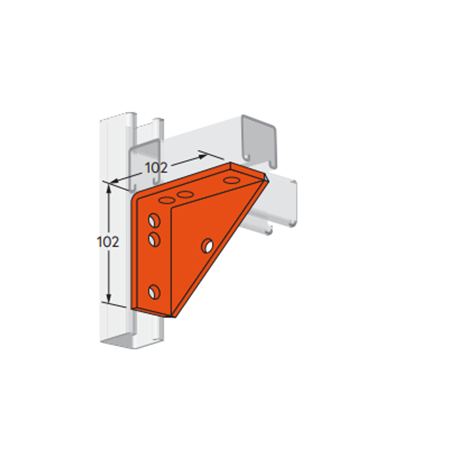

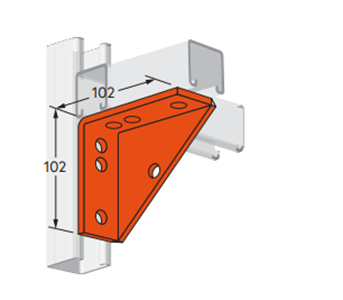

Braced Angle Bracket 4 Hole 90° | Hot-Dip Galvanized | 102x102mm | by FDG
The Braced Angle Bracket 4 Hole 90° is designed for robust structural support in construction projects. Made from steel with a hot-dip galvanized finish, it offers superior corrosion resistance and a secure 4-hole design for easy installation. Ideal for reinforcing timber and metal joints, this bracket ensures compliance with building codes and enhances the durability of your frameworks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Braced Angle Bracket 4 Hole 90° | Hot-Dip Galvanized | 102x102mm | by FDG
Brand: FDG
SKU: A-FDG2484G
Alternatively Known As: Angle Brace, Corner Bracket, Steel Angle Bracket, Structural Angle Support
Technical Specifications
- Material: Steel with hot-dip galvanized coating
- Hole Count: 4
- Angle: 90 degrees
- Size: 102mm x 102mm
- Corrosion Resistance: HDG finish
- Weight: 1.2 kg
Key Features
- Hot-dip galvanized (HDG) finish for superior corrosion resistance
- 4-hole design for secure fastening
- 90° angle bracket for strong right-angle support
- Dimensions of 102x102mm suitable for various structural applications
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure structural integrity and compliance with building codes.
Applications
- Structural support in construction and building frameworks
- Reinforcement of timber and metal joints
- Use in residential, commercial, and industrial building projects
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanizing extends product life, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Warranty against manufacturing defects for 5 years under normal use conditions.
Available Now
The FDG Braced Angle Bracket 4 Hole 90°, 102x102mm HDG is available now for immediate purchase. Ideal for structural reinforcement in construction and building projects.
