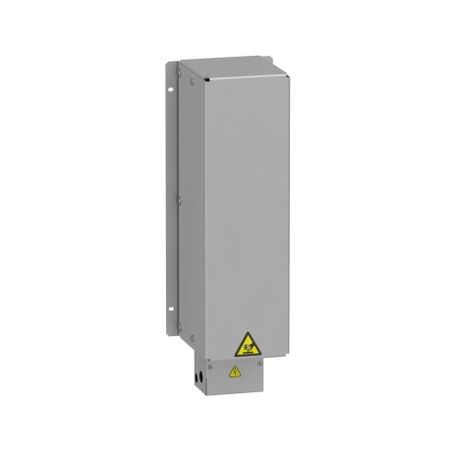

Braking Resistor 16 Ohm | 0.96 kW Power Rating | IP20 Protection | by Clipsal
The Braking Resistor 16 Ohm is designed for effective braking in industrial automation systems, featuring a robust 0.96 kW power rating and IP20 protection for indoor use. Ideal for variable frequency drives (VFDs) and machinery requiring rapid motor deceleration, this resistor enhances energy efficiency and extends equipment lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Braking Resistor 16 Ohm | 0.96 kW Power Rating | IP20 Protection | by Clipsal
Brand: Clipsal
SKU: SCHVW3A7733
Alternatively Known As: VFD Braking Resistor, Dynamic Braking Resistor, Motor Braking Resistor, SCHVW3A7733
Technical Specifications
- Resistance: 16 Ohm
- Power Rating: 0.96 kW
- Protection: IP20 (indoor use)
- Compatible with: Variable Frequency Drives (VFDs)
- Mounting: Panel mount
- Operating Temperature: -25°C to +50°C
- Dimensions (H x L x W): 80mm x 200mm x 60mm
- Weight: 1.2 kg
Key Features
- 16 Ohm resistance for effective braking
- 0.96 kW power rating
- IP20 protection for indoor use
- Robust construction for industrial environments
- Compatible with a wide range of VFDs
Professional Installation Requirements
- Installation must be performed by a qualified electrician or technician familiar with VFD systems and resistor safety requirements.
Applications
- Industrial automation systems
- Variable frequency drives (VFDs)
- Elevators and hoists
- Cranes and conveyors
- Machinery requiring rapid motor deceleration
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by dissipating excess energy safely
- Reduces wear on mechanical braking systems, extending equipment lifespan
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Braking Resistor 16 Ohm 0.96kW IP20 (SCHVW3A7733) is available for immediate purchase. Ideal for industrial automation, VFDs, and machinery requiring controlled braking.
