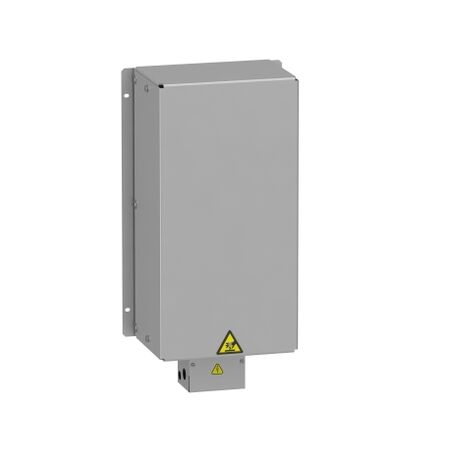

Braking Resistor 16 Ohm | 1.9 kW Power Rating | IP20 Protection | by Clipsal
The Braking Resistor 16 Ohm is designed for effective motor braking in industrial automation systems. With a robust 1.9 kW power rating and IP20 protection, it’s perfect for use with variable frequency drives (VFDs) in applications like elevators, cranes, and conveyors. This reliable component enhances energy efficiency and reduces mechanical wear, making it an essential choice for machinery requiring rapid motor deceleration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Braking Resistor 16 Ohm | 1.9 kW Power Rating | IP20 Protection | by Clipsal
Brand: Clipsal
SKU: SCHVW3A7743
Alternatively Known As: VFD Braking Resistor, Dynamic Braking Resistor, Motor Braking Resistor, Clipsal SCHVW3A7743
Technical Specifications
- Resistance: 16 Ohm
- Power Rating: 1.9 kW
- Protection Rating: IP20
- Suitable for use with VFDs
- Product Code: SCHVW3A7743
- Dimensions (H x L x W): 70mm x 300mm x 80mm
- Weight: 2.5 kg
Key Features
- 16 Ohm resistance for effective braking
- Power rating of 1.9 kW
- IP20 protection for indoor use
- Robust construction for industrial environments
- Compatible with a wide range of VFDs
Professional Installation Requirements
- Installation must be performed by a qualified electrician in accordance with local electrical standards and manufacturer guidelines.
Applications
- Industrial automation systems
- Variable frequency drives (VFDs)
- Elevators and hoists
- Cranes and conveyors
- Machinery requiring rapid motor deceleration
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by dissipating excess energy during motor braking
- Reduces mechanical wear on motors and drive systems
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Braking Resistor 16 Ohm 1.9kW IP20 (SCHVW3A7743) is available for immediate purchase. Ideal for industrial automation and machinery applications requiring reliable motor braking.
