Trade Discount 17%
Brass Coupling Female Nickel Plated | IP66/68 Rated | Hazardous Area Certified | by Wattmaster
The Brass Coupling Female Nickel Plated is designed for hazardous areas, featuring durable brass construction with nickel plating for corrosion resistance. With an IP66/68 rating, it ensures protection against water ingress, making it ideal for both indoor and outdoor applications in explosive atmospheres. Certified to IECEx standards, this coupling is perfect for reliable jointing of conduit in industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

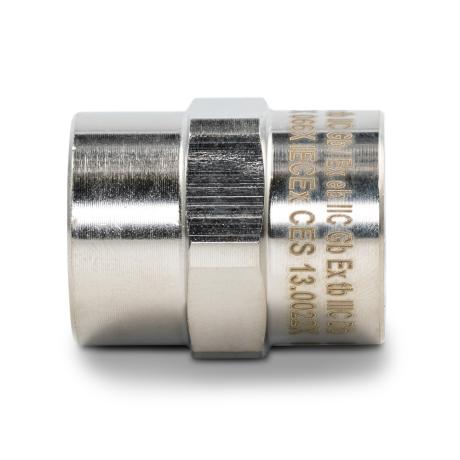

Product Name/Title: Brass Coupling Female Nickel Plated | IP66/68 Rated | Hazardous Area Certified | by Wattmaster
Brand: Wattmaster
SKU: ALCBJBM20M20
Alternatively Known As: Female Brass Coupling M20, Nickel Plated Brass Coupling, Hazardous Area Cable Coupling, M20 Female Coupling
Technical Specifications
- Material: Brass with nickel plating
- Ingress Protection: IP66/68
- Temperature Range: -60°C to +130°C
- Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.15 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Degree of protection IP66/68 against ingress of water
- Certified for hazardous areas with IECEx CES 13.0022X compliance
- Protection types include Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Complies with IEC/AS/NZS60079 series and IEC/AS/NZS 60529 standards
- Wide temperature range from -60°C to +130°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance and safety.
Applications
- Indoor and outdoor use in hazardous areas
- Jointing of conduit - male to male penetration
- Suitable for explosive atmospheres requiring certified protection
Standards & Compliance
- AS/NZS 60079 series for electrical apparatus in explosive atmospheres
- AS/NZS 60529 for ingress protection ratings
Environmental Benefits
- Durable brass and nickel plating reduce need for frequent replacements, minimizing waste
- High ingress protection extends product life in harsh environments
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Brass Coupling Female Nickel Plated Hazardous Areas M20-M20 is available for immediate purchase, ideal for use in hazardous industrial and commercial electrical installations.
