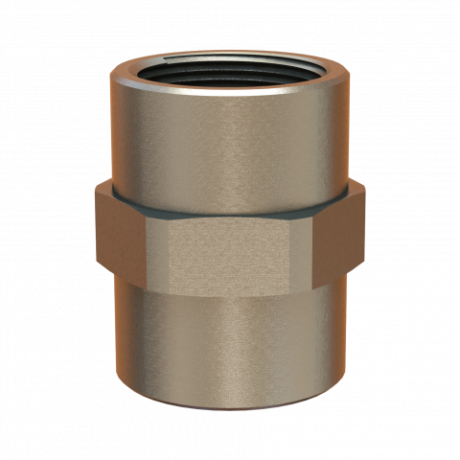

Brass Coupling Female Nickel Plated | IP66/68 Rated | M25 to M20 | by Wattmaster
Brass Coupling Female Nickel Plated is designed for hazardous areas, featuring IP66/68 protection and compliance with IECEx standards. Ideal for industrial and commercial electrical installations, this durable coupling ensures reliable jointing of conduits in challenging environments, providing safety and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Coupling Female Nickel Plated | IP66/68 Rated | M25 to M20 | by Wattmaster
Brand: Wattmaster
SKU: ALCBJBM25M20
Alternatively Known As: Nickel Plated Brass Female Coupling, Hazardous Area Brass Coupling, M25 to M20 Brass Coupling
Technical Specifications
- Material: Brass with nickel plating
- Ingress Protection: IP66/68
- Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Temperature Range: -60°C to +130°C
- Conduit Size: M25 to M20
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Degree of protection IP66/68 against ingress of water
- Compliant with IECEx CES 13.0022X for hazardous area use
- Protection types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Temperature range from -60°C to +130°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance and safety.
Applications
- Indoor and outdoor use in hazardous areas
- Jointing of conduit - male to male penetration
- Suitable for industrial and commercial electrical installations requiring explosion protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
Environmental Benefits
- Durable brass and nickel plating reduce need for frequent replacements, minimizing waste
- High ingress protection extends product life in harsh environments
Warranty Information
Standard manufacturer warranty applies, typically 12 months against defects.
Available Now
Available for immediate purchase, ideal for electrical conduit jointing in hazardous industrial and commercial environments.
