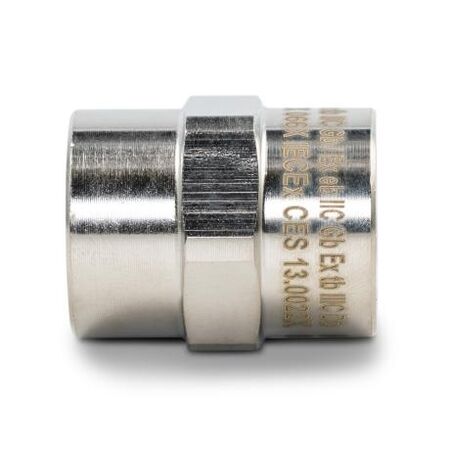

Brass Coupling Female Nickel Plated IP66 68 Rated Hazardous Area Certified Variant-1 Wattmaster

BRAND: Alco
SKU: ALCBJBM20M20
$48.30 List price: $64.40
+ −
30 Days Return Electricians Unlock Trade Access
The Brass Coupling Female Nickel Plated is designed for hazardous areas, featuring durable brass construction with nickel plating for corrosion resistance.
Technical Specifications
  • Material: Brass with nickel plating
  • Ingress Protection: IP66/68
  • Temperature Range: -60°C to +130°C
  • Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
  • Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
  • Dimensions (H x L x W): 30mm x 50mm x 30mm
  • Weight: 0.15 kg
Key Features
  • Nickel plated brass construction for durability and corrosion resistance
  • Degree of protection IP66/68 against ingress of water
  • Certified for hazardous areas with IECEx CES 13.0022X compliance
  • Protection types include Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
  • Complies with IEC/AS/NZS60079 series and IEC/AS/NZS 60529 standards
  • Wide temperature range from -60°C to +130°C
Professional Installation Requirements
  • Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance and safety.
Applications
  • Indoor and outdoor use in hazardous areas
  • Jointing of conduit - male to male penetration
  • Suitable for explosive atmospheres requiring certified protection
Standards & Compliance
  • AS/NZS 60079 series for electrical apparatus in explosive atmospheres
  • AS/NZS 60529 for ingress protection ratings
Environmental Benefits
  • Durable brass and nickel plating reduce need for frequent replacements, minimizing waste
  • High ingress protection extends product life in harsh environments
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Wattmaster Brass Coupling Female Nickel Plated Hazardous Areas M20-M20 is available for immediate purchase, ideal for use in hazardous industrial and commercial electrical installations.
