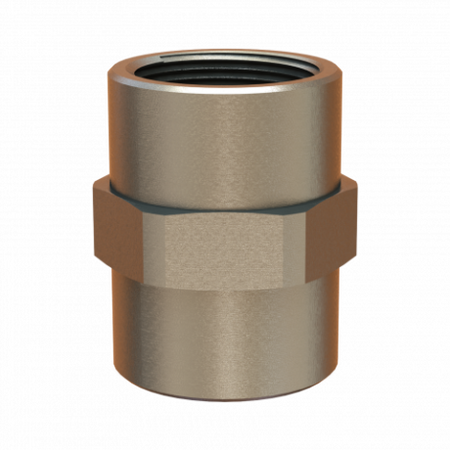

Brass Coupling Female Nickel Plated IP66 68 Rated Hazardous Area Certified Variant-2 Wattmaster
Brass Coupling Female Nickel Plated is designed for hazardous areas, featuring IP66 68 protection against water ingress and compliance with IECEx standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Brass with nickel plating
- Ingress Protection: IP66/68
- Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Temperature Range: -60°C to +130°C
- Dimensions (H x L x W): 40mm x 40mm x 60mm
- Weight: 0.15 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Degree of protection IP66/68 against ingress of water
- Certified for hazardous areas with IECEx CES 13.0022X compliance
- Protection types include Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Temperature range from -60°C to +130°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area electrical equipment to ensure compliance and safety.
Applications
- Indoor and outdoor use in hazardous areas
- Jointing of conduit - male to male penetration in electrical installations
- Suitable for explosive atmospheres requiring certified protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- High ingress protection reduces risk of environmental contamination
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Coupling Female Nickel Plated Hazardous Areas M40-M40 is available for immediate purchase, ideal for hazardous area electrical conduit jointing applications.
