Trade Discount 17%

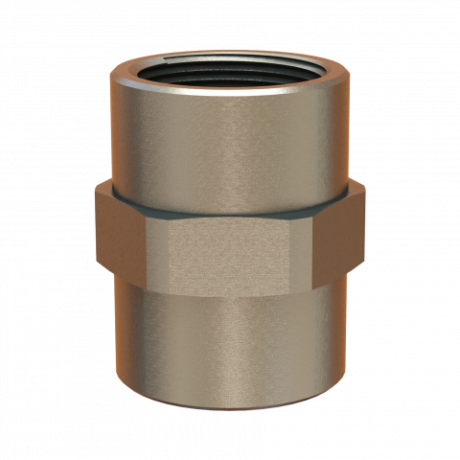

Brass Coupling Female Nickel Plated M25-M25 | IP66/68 Rated | IECEx Certified | by Wattmaster
The Brass Coupling Female Nickel Plated M25-M25 is designed for reliable jointing in hazardous areas, featuring durable brass construction and an IP66/68 rating for superior water protection. Certified for explosive atmospheres, this coupling is perfect for both indoor and outdoor electrical installations, ensuring safety and compliance in critical environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Coupling Female Nickel Plated M25-M25 | IP66/68 Rated | IECEx Certified | by Wattmaster
Brand: Wattmaster
SKU: ALCBJBM25M25
Alternatively Known As: Female Brass Coupling M25, Nickel Plated Conduit Coupling, Hazardous Area Cable Coupling
Technical Specifications
- Material: Brass, Nickel Plated
- Ingress Protection: IP66/68
- Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Temperature Range: -60°C to +130°C
- Size: M25-M25
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.15 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- High degree of protection against water ingress with IP66/68 rating
- Certified for hazardous areas with IECEx CES 13.0022X compliance
- Protection types include Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Wide operating temperature range from -60°C to +130°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance and safety.
Applications
- Indoor and outdoor use in hazardous areas
- Jointing of conduit - male to male penetration in electrical installations
- Suitable for explosive atmospheres requiring certified protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
Environmental Benefits
- Durable brass and nickel plating reduce the need for frequent replacements, minimizing waste
- High protection rating prevents ingress of contaminants, reducing environmental damage
Warranty Information
Warranty terms as provided by Wattmaster, typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Coupling Female Nickel Plated Hazardous Areas M25-M25 is available for immediate purchase, ideal for electrical conduit jointing in hazardous environments.
