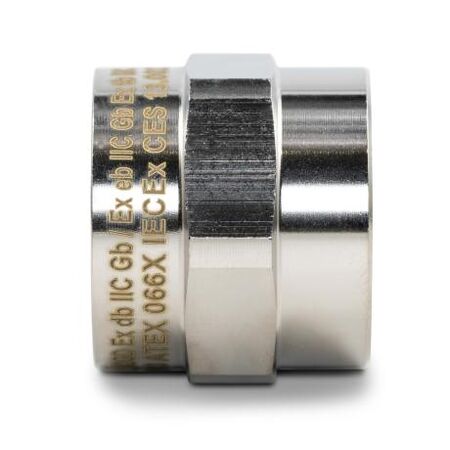

Brass Coupling Female Nickel Plated M32-M32 IP66 68 Rated Hazardous Area Certified Wattmaster

BRAND: Alco
SKU: ALCBJBM32M32
$63.40 List price: $84.60
+ −
30 Days Return Electricians Unlock Trade Access
The Brass Coupling Female Nickel Plated M32-M32 is designed for hazardous area applications, featuring robust brass construction with nickel plating for enhanced
Technical Specifications
  • Material: Brass with nickel plating
  • Ingress Protection: IP66/68
  • Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
  • Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
  • Temperature Range: -60°C to +130°C
  • Dimensions (H x L x W): 40mm x 60mm x 40mm
  • Weight: 0.15 kg
Key Features
  • Brass construction with nickel plating for corrosion resistance
  • High degree of protection against water ingress with IP66/68 rating
  • Certified for hazardous areas with IECEx CES 13.0022X compliance
  • Protection types include Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
  • Wide operating temperature range from -60°C to +130°C
Professional Installation Requirements
  • Installation should be performed by a qualified professional experienced in hazardous area electrical installations to ensure compliance and safety.
Applications
  • Indoor and outdoor use in hazardous areas
  • Jointing of conduit - male to male penetration
  • Suitable for explosive atmospheres requiring high ingress protection
Standards & Compliance
  • AS/NZS 60079 – Explosive atmospheres standards
  • AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
  • Durable brass and nickel plating reduce the need for frequent replacements, minimizing waste
  • High ingress protection extends product lifespan in harsh environments
Warranty Information

Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.

Available Now

The Wattmaster Brass Coupling Female Nickel Plated M32-M32 is available for immediate purchase, ideal for hazardous area conduit jointing applications.
