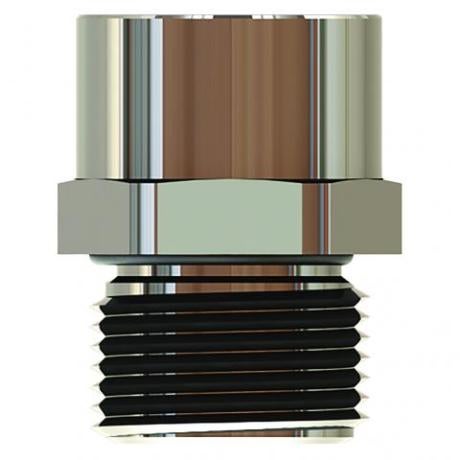

Brass Enlarger Nickel Plated Hazardous Areas M20-M32 | IP66/68 Rated | Durable Silicone Seal | by Wattmaster
The Brass Enlarger Nickel Plated Hazardous Areas M20-M32 is designed for safe and reliable thread size adaptation in hazardous electrical installations. With a robust nickel-plated brass construction and an IP66/68 rating, it ensures protection against water ingress. Ideal for both indoor and outdoor applications, this enlarger features a silicone seal for dependable sealing and is compliant with stringent safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Enlarger Nickel Plated Hazardous Areas M20-M32 | IP66/68 Rated | Durable Silicone Seal | by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBZBM20M32
Alternatively Known As: Brass Thread Enlarger, Hazardous Area Thread Adapter, Nickel Plated Brass Enlarger, Cable Gland Enlarger M20 to M32
Technical Specifications
- Material: Brass, Nickel Plated
- Seal: Silicone
- Temperature Range: -60°C to +130°C
- Ingress Protection: IP66/68
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Thread Size Increase: M20 to M32
- Locknut: Supplied as standard
- Dimensions (H x L x W): 20mm x 40mm x 40mm
- Weight: 0.15 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Suitable for hazardous areas with protection types Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Degree of protection IP66/68 against ingress of water
- Temperature range from -60°C to +130°C
- Locknut supplied as standard for secure fitting
- Seal made of silicone for reliable sealing
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced in hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area electrical installations
- Enclosure mounting thread adaptation for fittings and glands in hazardous environments
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres (Electrical equipment for explosive gas atmospheres)
- AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable brass and nickel plating reduce the need for frequent replacements, minimizing waste
- Sealed design prevents ingress of contaminants, protecting electrical systems and reducing environmental hazards
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Enlarger Nickel Plated Hazardous Areas M20-M32 is available for immediate purchase, ideal for hazardous area electrical installations requiring thread size adaptation.
