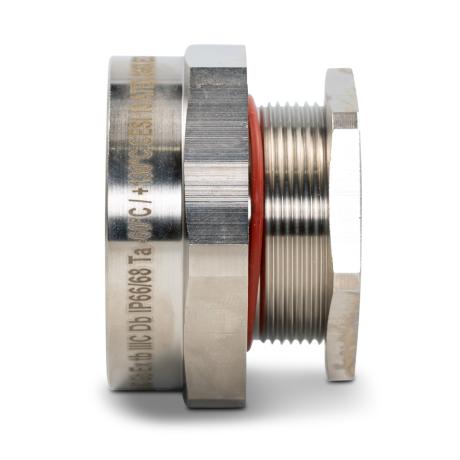

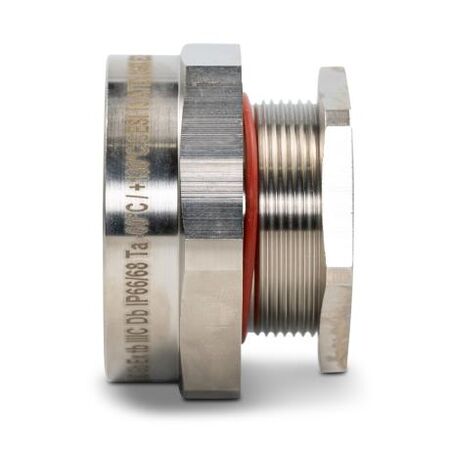

Brass Enlarger Nickel Plated Hazardous Areas M40-M50 | IP66/68 Protection | -60°C to +130°C Temperature Range | by Wattmaster
The Brass Enlarger Nickel Plated Hazardous Areas M40-M50 is designed for hazardous area electrical installations, featuring durable nickel-plated brass construction and a temperature range of -60°C to +130°C. With IP66/68 ingress protection, it ensures reliable performance in both indoor and outdoor environments, making it ideal for industrial applications where safety and compliance are paramount.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Enlarger Nickel Plated Hazardous Areas M40-M50 | IP66/68 Protection | -60°C to +130°C Temperature Range | by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBZBM40M50
Alternatively Known As: Brass Thread Enlarger, Hazardous Area Cable Gland Enlarger, Nickel Plated Brass Enlarger M40 to M50
Technical Specifications
- Material: Brass, Nickel Plated
- Seal: Silicone
- Temperature Range: -60°C to +130°C
- Ingress Protection: IP66/68
- Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Dimensions (H x L x W): 30mm x 60mm x 60mm
- Weight: 0.15 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Temperature range from -60°C to +130°C
- Provides degree of protection IP66/68 against water ingress
- Includes locknut as standard
- Sealed with silicone for enhanced protection
- Protection types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Professional Installation Requirements
- Installation should be performed by a qualified professional experienced in hazardous area electrical installations to ensure compliance and safety.
Applications
- Indoor and outdoor hazardous area installations
- Used to increase enclosure mounting thread size for fitting/gland compatibility
- Suitable for electrical and industrial cable gland setups in hazardous environments
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass and nickel plating extend product life, reducing replacement frequency and waste
- Sealed design prevents ingress, reducing risk of environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass Enlarger Nickel Plated Hazardous Areas M40-M50 is available for immediate purchase, ideal for hazardous area electrical and industrial applications.
