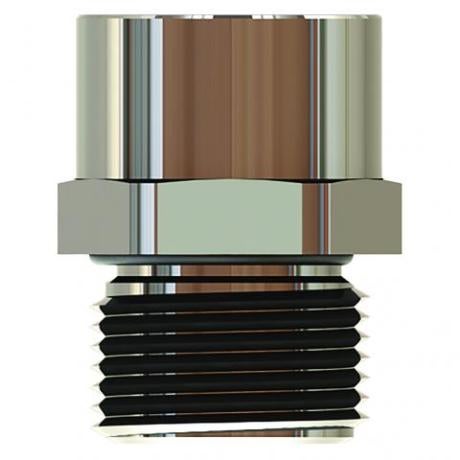

Brass Enlarger Nickel Plated M12 to M20 | IP66/68 Rated | Durable Construction | by Wattmaster
The Brass Enlarger Nickel Plated M12 to M20 is designed for hazardous area electrical installations, featuring durable nickel-plated brass construction and an IP66/68 rating for water ingress protection. Ideal for adapting enclosure mounting threads, this product ensures compliance with safety standards in explosive atmospheres, making it perfect for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Enlarger Nickel Plated M12 to M20 | IP66/68 Rated | Durable Construction | by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBZBM12M20
Alternatively Known As: Hazardous Area Brass Thread Enlarger, Nickel Plated Thread Adapter, M12 to M20 Brass Enlarger
Technical Specifications
- Material: Brass with nickel plating
- Seal: Silicone
- Temperature Range: -60°C to +130°C
- Ingress Protection: IP66/68
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Includes locknut
- Dimensions (H x L x W): 25mm x 40mm x 25mm
- Weight: 0.15 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Increases enclosure mounting thread size from M12 to M20
- Suitable for hazardous areas with protection types Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- IP66/68 rated for protection against water ingress
- Includes locknut as standard
- Temperature range from -60°C to +130°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced in hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area electrical installations
- Enclosure mounting thread adaptation for cable glands and fittings
- Use in explosive atmospheres requiring Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass and nickel plating extend product lifespan, reducing waste
- Sealed design prevents ingress of contaminants, protecting electrical systems and reducing maintenance
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Brass Enlarger Nickel Plated Hazardous Areas M12-M20 is available for immediate purchase, ideal for hazardous area electrical installations requiring thread adaptation.
