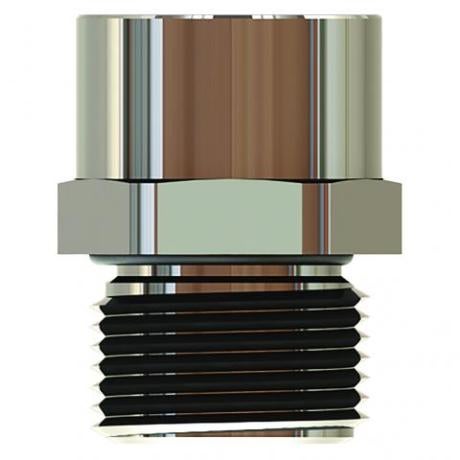

Brass Enlarger Nickel Plated M32-M50 | IP66/68 Rated | Durable Silicone Seal | by Wattmaster
The Brass Enlarger Nickel Plated M32-M50 is designed for hazardous area electrical installations, featuring durable nickel-plated brass construction and a silicone seal for enhanced performance. With an IP66/68 rating, it ensures protection against water ingress, making it ideal for both indoor and outdoor applications in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Enlarger Nickel Plated M32-M50 | IP66/68 Rated | Durable Silicone Seal | by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBZBM32M50
Alternatively Known As: Brass Thread Enlarger, Hazardous Area Cable Gland Enlarger, Nickel Plated Brass Enlarger, M32 to M50 Thread Adapter
Technical Specifications
- Material: Brass, Nickel Plated
- Seal: Silicone
- Temperature Range: -60°C to +130°C
- Ingress Protection: IP66/68
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Includes locknut for secure installation
- Dimensions (H x L x W): 20mm x 50mm x 50mm
- Weight: 0.15 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Suitable for hazardous areas with protection types Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Degree of protection IP66/68 against ingress of water
- Temperature range from -60°C to +130°C
- Locknut supplied as standard for secure fitting
- Seal made of silicone for enhanced sealing performance
Professional Installation Requirements
- Installation should be performed by a qualified professional experienced in hazardous area electrical installations to ensure compliance and safety.
Applications
- Indoor and outdoor hazardous area installations
- Enclosure mounting thread adaptation for cable glands and fittings
- Industrial and commercial electrical installations requiring hazardous area compliance
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass and nickel plating reduce the need for frequent replacements, minimizing waste
- Sealed design prevents ingress of contaminants, protecting electrical systems and reducing environmental hazards
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Brass Enlarger Nickel Plated Hazardous Areas M32-M50 is available for immediate purchase, ideal for hazardous area electrical installations requiring thread size adaptation.
