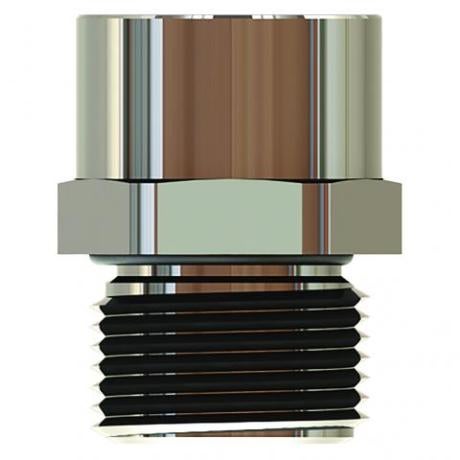

Brass Enlarger Nickel Plated M63 to M75 | IP66/68 Rated | Durable Construction | by Wattmaster
The Brass Enlarger Nickel Plated M63 to M75 is designed for hazardous area electrical installations, featuring a robust nickel-plated brass construction that ensures durability and corrosion resistance. With an IP66/68 rating, it provides excellent protection against water ingress, making it ideal for both indoor and outdoor applications in explosive atmospheres.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Enlarger Nickel Plated M63 to M75 | IP66/68 Rated | Durable Construction | by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBZBM63M75
Alternatively Known As: Hazardous Area Brass Thread Enlarger, Nickel Plated Brass Enlarger M63 to M75, Cable Gland Thread Adapter
Technical Specifications
- Material: Brass, Nickel Plated
- Temperature Range: -60°C to +130°C
- Ingress Protection: IP66/68
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Seal Material: Silicone
- Thread Size Increase: M63 to M75
- Dimensions (H x L x W): 30mm x 75mm x 75mm
- Weight: 0.3 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Suitable for temperature range from -60°C to +130°C
- Increases enclosure mounting thread size from M63 to M75
- Degree of protection IP66/68 against ingress of water
- Locknut supplied as standard for secure fitting
- Sealed with silicone for enhanced protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced in hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area electrical installations
- Enclosure mounting thread enlargement for cable glands and fittings
- Use in explosive atmospheres requiring Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection by enclosures (IP Code)
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Sealed design prevents ingress of contaminants, reducing maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass Enlarger Nickel Plated Hazardous Areas M63-M75 is available for immediate purchase, ideal for hazardous area electrical installations requiring thread size adaptation.
