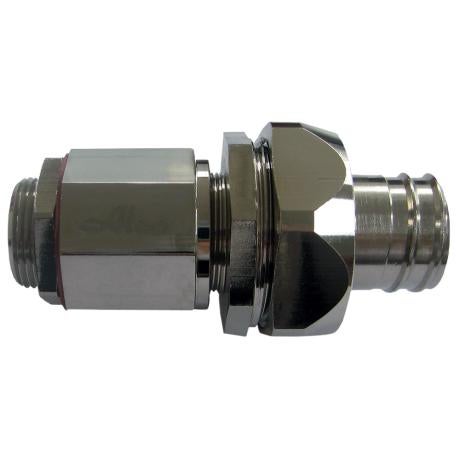

Brass Hazardous Weatherproof M20 Cable Gland | IP66/68 Rated | 4-10mm Cable Compatibility | Flexible Conduit Adaptor | by Wattmaster
The Brass Hazardous Weatherproof M20 Cable Gland is designed for secure sealing in hazardous environments, accommodating unarmoured cables with a diameter of 4-10mm. With an IP66/68 rating for dust and water protection, this gland includes a flexible conduit adaptor and locknut for easy installation, making it ideal for both indoor and outdoor corrosive applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Hazardous Weatherproof M20 Cable Gland | IP66/68 Rated | 4-10mm Cable Compatibility | Flexible Conduit Adaptor | by Wattmaster
Brand: Wattmaster
SKU: ALCHUW20SBLTA16
Alternatively Known As: Brass Hazardous Cable Gland M20, Weatherproof Cable Gland M20, Hazardous Area Cable Gland, M20 Cable Gland with Conduit Adaptor
Technical Specifications
- Cable Diameter Compatibility: 4-10mm
- Material: Brass
- Ingress Protection: IP66/68 (30m)
- Standards: IEC 60529, AS 1939-1990
- Includes locknut and flexible conduit adaptor LTA16/20
- Suitable for unarmoured cables
- Hazardous location rated
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Provides a secure seal on cable sheath to prevent ingress
- Adaptor nut compatible with liquid tight metal conduit fittings
- IP66/68 rated for dust and water ingress protection up to 30m
- Includes locknut for secure installation
- Suitable for various hazardous locations
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with hazardous area safety standards and proper sealing.
Applications
- Indoor and outdoor corrosive environments
- Hazardous locations requiring secure cable sealing
- Use with unarmoured cables 4-10mm diameter
- Suitable for liquid tight metal conduit installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable brass construction reduces need for frequent replacements
- Weatherproof and corrosion resistant, extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Brass Hazardous Weatherproof M20 Cable Gland with Flexible Conduit Adaptor LTA16/20 is available for immediate purchase, ideal for hazardous and corrosive environment cable installations.
