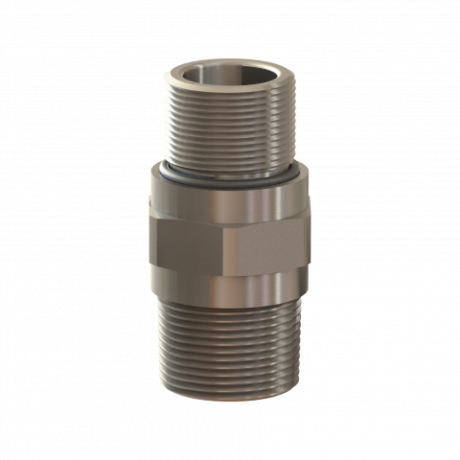

Brass Nipple M32 - M32 | IP66/68 Ingress Protection | Nickel Plated | by Wattmaster
The Brass Nipple M32 - M32 is designed for hazardous areas, featuring IP66/68 ingress protection and durable nickel plating. Ideal for jointing conduits in explosive atmospheres, this product ensures safety and compliance with IECEx standards, making it perfect for both indoor and outdoor electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Nipple M32 - M32 | IP66/68 Ingress Protection | Nickel Plated | by Wattmaster
Brand: Wattmaster
SKU: ALCBNBM32M32
Alternatively Known As: Brass conduit nipple, M32 conduit connector, Hazardous area conduit nipple, Nickel plated brass nipple
Technical Specifications
- Material: Brass, Nickel Plated
- Seal: Silicone
- Ingress Protection: IP66/68
- Temperature Range: -60°C to +130°C
- Standards: IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Compliance: IECEx CES 13.0022X
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Dimensions (H x L x W): 20mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- Degree of protection against ingress of water IP66/68
- Compliance with IECEx CES 13.0022X
- Protection types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db, IP66/68
- Material: Brass, Nickel Plated
- Seal: Silicone
- Temperature Range: -60°C to +130°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area electrical equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor use in hazardous areas
- Jointing of conduit - female to female penetration in explosive atmospheres
- Suitable for electrical installations requiring high ingress protection and explosion safety
Standards & Compliance
- AS/NZS 60079 series for explosive atmospheres
- AS/NZS 60529 for ingress protection
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- High ingress protection reduces risk of environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass Nipple M32 - M32 for Hazardous Areas is available for immediate purchase, ideal for electrical conduit jointing in hazardous environments.
