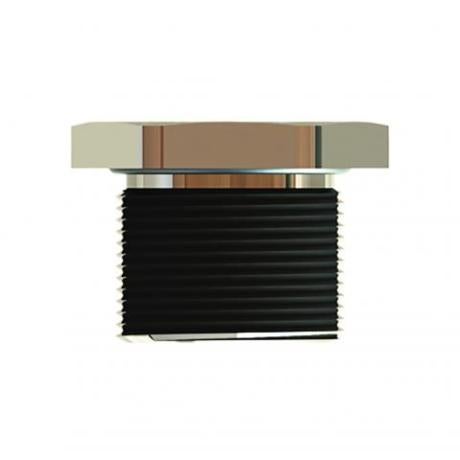

Brass Reducer Nickel Plated | IP66/68 Rated | Ex db IIC Gb Protection | @Each by Wattmaster
The Brass Reducer Nickel Plated is designed for hazardous areas, featuring IP66/68 protection and Ex db IIC Gb certification. Ideal for both indoor and outdoor electrical installations, this durable reducer ensures reliable sealing with its silicone seal and withstands temperatures from -60°C to +130°C. Perfect for applications requiring thread size reduction in explosive atmospheres.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Reducer Nickel Plated | IP66/68 Rated | Ex db IIC Gb Protection | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBRBM75M63
Alternatively Known As: Hazardous Area Brass Reducer, Nickel Plated Thread Reducer, M75 to M63 Thread Adapter, Explosion Proof Thread Reducer
Technical Specifications
- Material: Brass, Nickel Plated
- Seal: Silicone
- Temperature Range: -60°C to +130°C
- Ingress Protection: IP66/68
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Dimensions (H x L x W): 30mm x 75mm x 75mm
- Weight: 0.5 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Suitable for hazardous areas with protection types Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Degree of protection IP66/68 against ingress of water
- Temperature range from -60°C to +130°C
- Locknut supplied as standard for secure fitting
- Seal made of silicone for reliable sealing
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area electrical installations
- Used to reduce enclosure mounting thread size for fitting or gland compatibility
- Suitable for explosive atmospheres requiring certified equipment
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Sealed design prevents ingress of contaminants, reducing environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Brass Reducer Nickel Plated Hazardous Areas Male to Female M75-M63 is available for immediate purchase, ideal for hazardous area electrical installations requiring thread size reduction.
