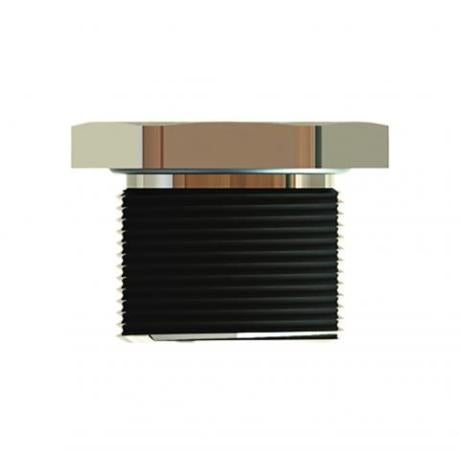

Brass Reducer Nickel Plated | IP66/68 Rated | -60°C to +130°C | Hazardous Areas | @Each by Wattmaster
The Brass Reducer Nickel Plated is designed for hazardous areas, featuring IP66/68 protection and a temperature range of -60°C to +130°C. Ideal for indoor and outdoor electrical installations, this durable reducer ensures reliable sealing with its silicone seal and nickel-plated brass construction, making it perfect for explosive atmospheres requiring certified equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Reducer Nickel Plated | IP66/68 Rated | -60°C to +130°C | Hazardous Areas | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBRBM75M50
Alternatively Known As: Hazardous Area Brass Reducer, Nickel Plated Thread Reducer, M75 to M50 Thread Adapter, Cable Gland Reducer
Technical Specifications
- Material: Brass, Nickel Plated
- Seal: Silicone
- Temperature Range: -60°C to +130°C
- Ingress Protection: IP66/68
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Dimensions (H x L x W): 40mm x 75mm x 75mm
- Weight: 0.3 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Suitable for hazardous areas with protection types Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Degree of protection IP66/68 against ingress of water
- Temperature range from -60°C to +130°C
- Locknut supplied as standard for secure fitting
- Seal made of silicone for reliable sealing
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area electrical installations
- Reducing enclosure mounting thread sizes for cable glands and fittings
- Use in explosive atmospheres requiring certified equipment
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards compliance
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Sealed design prevents ingress of contaminants, protecting electrical systems and reducing maintenance
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
The Wattmaster Brass Reducer Nickel Plated Hazardous Areas Male to Female M75-M50 is available for immediate purchase, ideal for hazardous area electrical installations requiring certified thread reducers.
