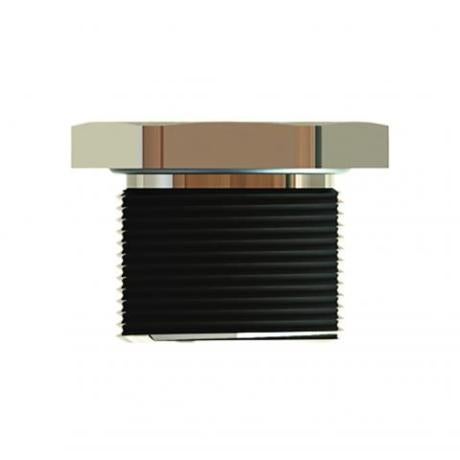

Brass Reducer Nickel Plated M16-M12 | IP66/68 Protection | Silicone Seal | by Wattmaster
The Brass Reducer Nickel Plated M16-M12 is designed for hazardous area electrical installations, featuring durable nickel-plated brass construction and a silicone seal for reliable performance. With an impressive temperature range of -60°C to +130°C and IP66/68 ingress protection, this reducer is perfect for environments requiring stringent safety standards and compatibility with explosive atmospheres.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Reducer Nickel Plated M16-M12 | IP66/68 Protection | Silicone Seal | by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBRBM16M12
Alternatively Known As: Hazardous Area Brass Thread Reducer, Nickel Plated Cable Gland Reducer, M16 to M12 Thread Reducer
Technical Specifications
- Material: Brass, Nickel Plated
- Seal: Silicone
- Temperature Range: -60°C to +130°C
- Ingress Protection: IP66/68
- Standards: IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Certification: IECEx CES 13.0022X
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Dimensions (H x L x W): 20mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Temperature range from -60°C to +130°C
- Degree of protection IP66/68 against ingress of water
- Includes locknut as standard
- Seal made of silicone for reliable sealing
- Complies with IECEx CES 13.0022X certification
- Protection types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area electrical installations
- Used to reduce enclosure mounting thread size for fitting/gland compatibility
- Suitable for explosive atmospheres requiring Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- High ingress protection reduces risk of environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Brass Reducer Nickel Plated Hazardous Areas Male to Female M16-M12 is available for immediate purchase, ideal for hazardous area electrical installations requiring thread size reduction.
