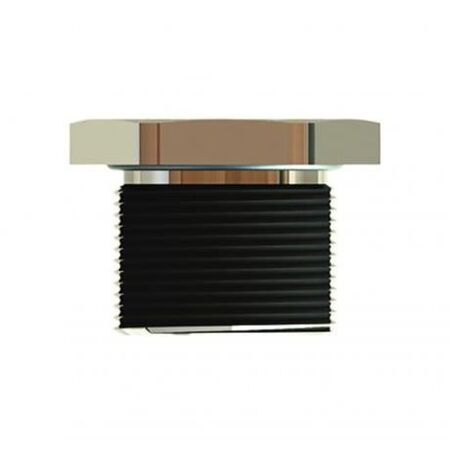

Brass Reducer Nickel Plated M20-M12 | IP66/68 Rated | Silicone Seal | by Wattmaster
The Brass Reducer Nickel Plated M20-M12 is designed for hazardous area electrical installations, featuring durable nickel-plated brass construction and a silicone seal for reliable performance. With an impressive temperature range of -60°C to +130°C and IP66/68 ingress protection, this reducer ensures compatibility in explosive atmospheres, making it ideal for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Reducer Nickel Plated M20-M12 | IP66/68 Rated | Silicone Seal | by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBRBM20M12
Alternatively Known As: Hazardous Area Brass Thread Reducer, Nickel Plated Brass Reducer M20 to M12, Explosion Proof Thread Reducer
Technical Specifications
- Material: Brass, Nickel Plated
- Seal: Silicone
- Temperature Range: -60°C to +130°C
- Ingress Protection: IP66/68
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Standards: IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Certification: IECEx CES 13.0022X
- Dimensions (H x L x W): 20mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Temperature range from -60°C to +130°C
- Degree of protection IP66/68 against ingress of water
- Includes locknut as standard
- Seal made of silicone for reliable sealing
- Complies with IECEx CES 13.0022X certification
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area electrical installations
- Used to reduce enclosure mounting thread size for fitting/gland compatibility
- Suitable for explosive atmospheres requiring Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db protection
Standards & Compliance
- AS/NZS 60079 series for explosive atmospheres
- AS/NZS 60529 for ingress protection
Environmental Benefits
- Durable brass and nickel plating extend product life, reducing replacement frequency and waste
- High ingress protection reduces risk of environmental contamination and equipment failure
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass Reducer Nickel Plated Hazardous Areas Male to Female M20-M12 is available for immediate purchase, ideal for hazardous area electrical installations requiring thread size reduction.
