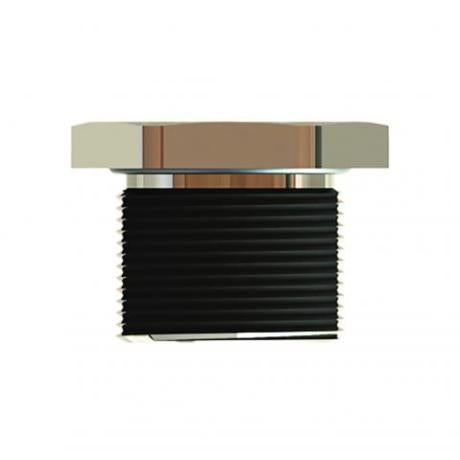

Brass Reducer Nickel Plated M63-M40 | IP66/68 Rated | Silicone Seal | by Wattmaster
The Brass Reducer Nickel Plated M63-M40 is designed for hazardous area electrical installations, featuring a durable nickel-plated brass construction and a temperature range of -60°C to +130°C. With an IP66/68 rating for water ingress protection and a silicone seal for enhanced performance, this reducer is perfect for environments requiring compliance with strict safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Reducer Nickel Plated M63-M40 | IP66/68 Rated | Silicone Seal | by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBRBM63M40
Alternatively Known As: Hazardous Area Brass Thread Reducer, Nickel Plated Brass Reducer, M63 to M40 Thread Reducer, Explosion Proof Thread Reducer
Technical Specifications
- Material: Brass, Nickel Plated
- Seal: Silicone
- Temperature Range: -60°C to +130°C
- Ingress Protection: IP66/68
- Standards Compliance: IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Certification: IECEx CES 13.0022X
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Dimensions (H x L x W): 40mm x 70mm x 70mm
- Weight: 0.3 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Temperature range from -60°C to +130°C
- Degree of protection IP66/68 against ingress of water
- Includes locknut as standard
- Seal made of silicone for enhanced sealing performance
- Complies with IECEx CES 13.0022X certification
- Protection types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area electrical installations
- Used to reduce enclosure mounting thread size for fitting or gland compatibility
- Suitable for explosive atmospheres requiring Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection by enclosures (IP Code)
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- High ingress protection reduces risk of environmental contamination
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Reducer Nickel Plated Hazardous Areas Male to Female M63-M40 is available for immediate purchase, ideal for hazardous area electrical installations requiring thread size reduction.
