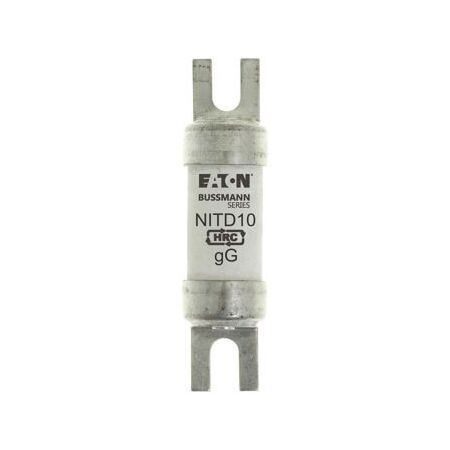

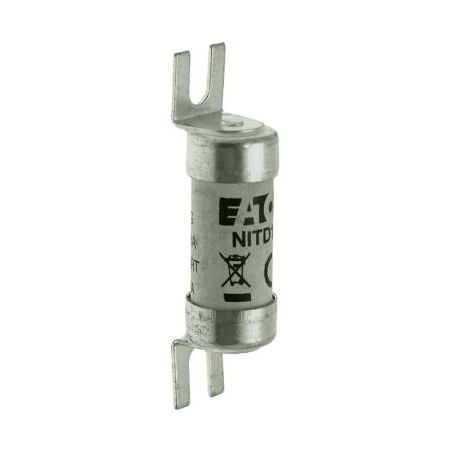

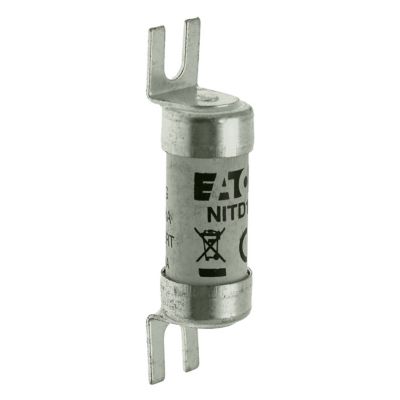

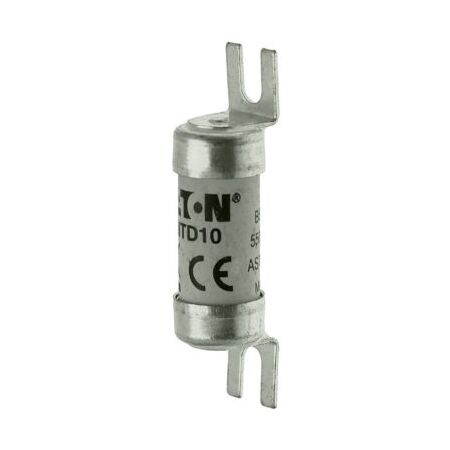

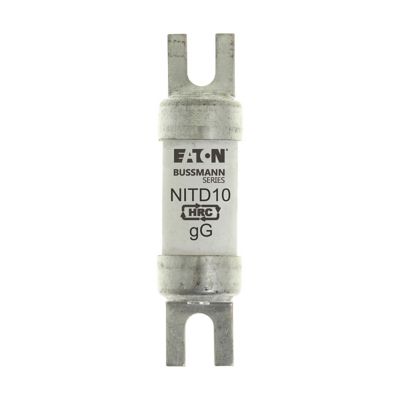

BS88 Fuse 10A 550V AC | 80 kA Breaking Capacity | Class gG/gL | Offset Bolted Tags by Eaton
The BS88 Fuse with a 10A amperage rating and 550V AC voltage is ideal for electrical protection in low voltage circuits. Built for industrial and commercial installations, it features an 80 kA breaking capacity and secure offset bolted tags for reliable fitting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: BS88 Fuse 10A 550V AC | 80 kA Breaking Capacity | Class gG/gL | Offset Bolted Tags by Eaton
Brand: Eaton
SKU: NITD10
Alternatively Known As: BS88 Fuse 10A, 550V Fuse, Low Voltage Fuse, Eaton Bussmann Fuse, NITD10 Fuse
Technical Specifications
- Amperage Rating: 10 A
- Voltage Rating: 550 V AC
- Fuse Type: NITD, Class gG/gL
- Breaking Capacity: 80 kA
- Construction: BS88/A1
- Dimensions: 14 mm x 14 mm x 55 mm
- Fitted with offset bolted tags
- Suitable for CM32FC Camaster and RS20 Red spot fuse holders
- Compliances: CE Marked, RoHS Compliant
- Certifications: IEC 60269-2, BS88
- Dimensions (H x L x W): 14mm x 55mm x 14mm
- Weight: 0.016 kg
Key Features
- 10A amperage rating
- 550V AC voltage rating
- Breaking capacity of 80 kA
- Class gG/gL fuse type for general purpose protection
- Offset bolted tags for secure fitting
- Complies with IEC 60269-2 and BS88 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse fitting.
Applications
- Electrical protection in low voltage circuits
- Industrial and commercial electrical installations
- Use with CM32FC Camaster fuse holder and RS20 Red spot fuse holder
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton warranty policy for details.
Available Now
The Eaton 10A 550V AC BS88 Fuse is available for immediate purchase, ideal for electrical protection in industrial and commercial low voltage applications.
