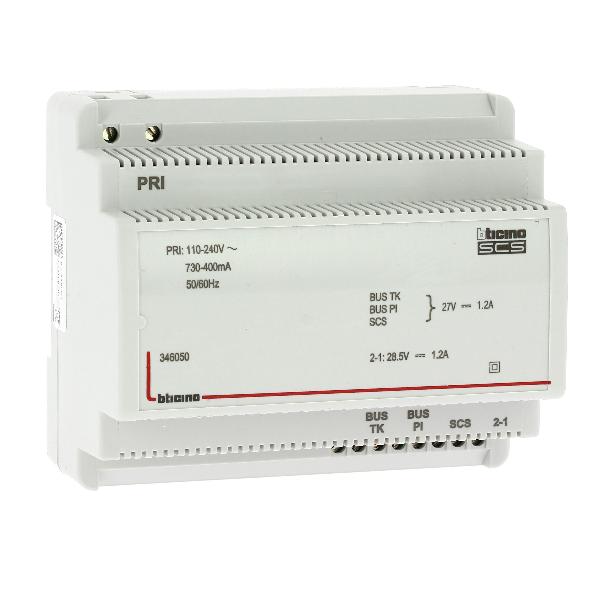

Bticino 230V a.c. 1200mA 6 DIN Module Power Supply | Electronically Protected | SELV Double Insulation | by Legrand
The Bticino 230V a.c. 1200mA 6 DIN Module Power Supply is designed for reliable power delivery in audio and video systems. With electronic overload protection and SELV double insulation, it ensures safety and efficiency. Ideal for professional installations, this power supply is perfect for mixed audio-video applications, providing two low safety voltage outputs for versatile use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bticino 230V a.c. 1200mA 6 DIN Module Power Supply | Electronically Protected | SELV Double Insulation | by Legrand
Brand: Legrand
SKU: 346050
Alternatively Known As: Bticino 6 DIN Power Supply, Legrand 230V Power Supply Module, 1200mA DIN Rail Power Supply
Technical Specifications
- Input Voltage: 230V a.c.
- Output Current: 1200mA
- Mounting: 6 DIN modular enclosure
- Protection: Electronically protected against overload and short circuit with integrated fuse
- Safety: SELV double insulation device
- Operating Temperature: -10°C to +55°C
- Dimensions (H x L x W): 85mm x 85mm x 106mm
- Weight: 0.27 kg
Key Features
- Electronically protected against overload and short circuit by means of an integrated fuse
- SELV double insulation safety device
- Operating temperature range from -10°C to +55°C
- Provides two power supplies in very low safety voltage to be used alternately, not simultaneously
Professional Installation Requirements
- Installation must be performed by a qualified electrician in accordance with local regulations and standards.
Applications
- Audio systems
- Video systems
- Mixed audio-video systems
- 2 WIRES system power supply
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient design reduces power consumption
- SELV double insulation enhances safety and reduces risk of electrical hazards
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Bticino 230V a.c. 1200mA 6 DIN Module Power Supply is available for immediate purchase, ideal for audio, video, and mixed system power supply applications.
