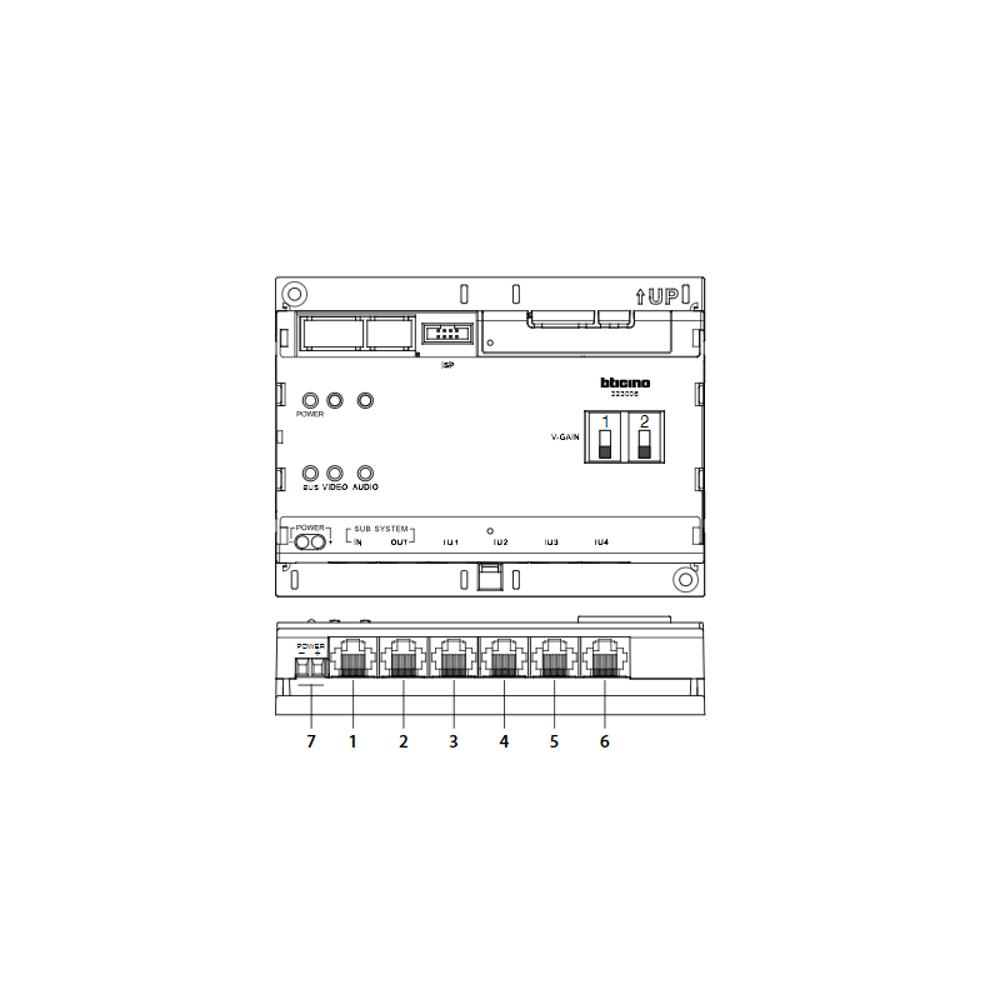

Bticino D45 8 DIN Floor Shunt Module | Video Signal Conversion | Apartment Isolation | by Legrand
The Bticino D45 8 DIN Floor Shunt Module is essential for video door entry systems, converting video signals on the BUS to transfer mode while providing apartment isolation for effective troubleshooting. Designed for seamless integration with Bticino systems, this module enhances efficiency and reliability, making it ideal for apartment buildings and professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bticino D45 8 DIN Floor Shunt Module | Video Signal Conversion | Apartment Isolation | by Legrand
Brand: Legrand
SKU: 323006
Alternatively Known As: Floor Shunt Module, Video Signal Shunt, Apartment Isolation Module, Bticino D45 Shunt
Technical Specifications
- Function: Converts video signals on the BUS to transfer mode
- Isolation: Provides apartment isolation for troubleshooting
- Mounting: 8 DIN rail module
- Compatibility: Designed for Bticino video door entry systems
- Dimensions (H x L x W): 60mm x 285mm x 278mm
- Weight: 0.86 kg
Key Features
- Floor shunt device with apartment isolation
- Converts video signals on the BUS to transfer mode
- Distributes video signals to connected internal units
- Isolation feature allows precise troubleshooting
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with video door entry systems to ensure proper integration and safety.
Applications
- Used in door entry systems for video signal conversion and distribution
- Suitable for apartment buildings requiring video signal isolation and troubleshooting
- Integration with internal units in video door entry BUS systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances system efficiency by enabling precise troubleshooting, reducing unnecessary replacements
- Supports durable and reliable video door entry systems, minimizing electronic waste
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Bticino D45 8 DIN Floor Shunt Module is available for immediate purchase, ideal for apartment video door entry system installations and maintenance.
