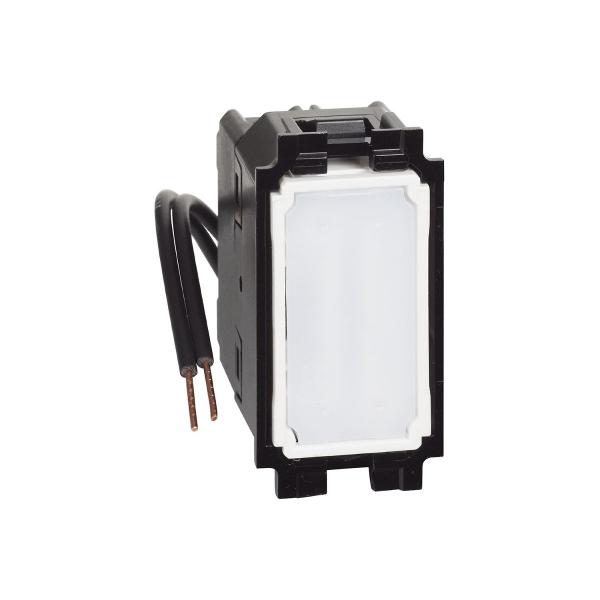

Bticino Living Now 1P 10A 4 Way Switch Mechanism | Integrated Blue LED | Screw Clamp Terminals | @Each of 1 | by Bticino
The Bticino Living Now 1P 10A 4 Way Switch Mechanism with integrated blue LED is perfect for both domestic and commercial lighting control. Designed for easy installation with screw clamp terminals, this energy-efficient switch ensures reliable performance and compliance with electrical safety standards. Ideal for modern homes and businesses, it combines functionality with a sleek design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bticino Living Now 1P 10A 4 Way Switch Mechanism | Integrated Blue LED | Screw Clamp Terminals | @Each of 1 | by Bticino
Brand: Bticino
SKU: K4004LB
Alternatively Known As: 4 Way Light Switch, Blue LED Switch Mechanism, Bticino 4 Way Switch
Technical Specifications
- Voltage: 230V a.c.
- Current Rating: 10 AX
- Switch Type: 4 Way Crossover
- Module Size: 1 Module
- Terminal Type: Screw clamps with 9mm screw terminals
- LED: Integrated blue LED (non-interchangeable)
- Cleaning: Use damp cloth only, no solvents or cleaning agents
- Dimensions (H x L x W): 45mm x 45mm x 25mm
- Weight: 0.3 kg
Key Features
- Integrated blue LED for backlighting of control
- Axial switch control with push-button
- 4 Way Crossover switch mechanism
- 10 AX current rating
- Screw clamps with 9mm screw terminals for secure wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Domestic lighting control
- Commercial lighting control
- Compatible with traditional electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED backlighting reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
1 Year warranty against manufacturing defects.
Available Now
The Bticino Living Now 1P 10A 1 Module 4 Way Switch Mechanism with Blue LED is available now for immediate purchase. Ideal for residential and commercial lighting control applications.
