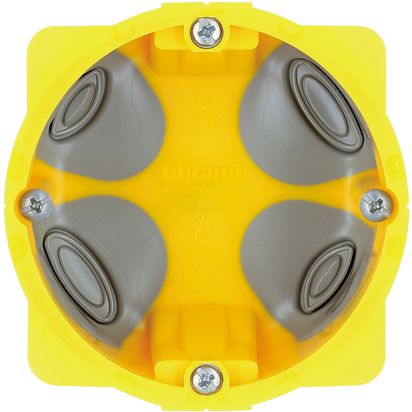

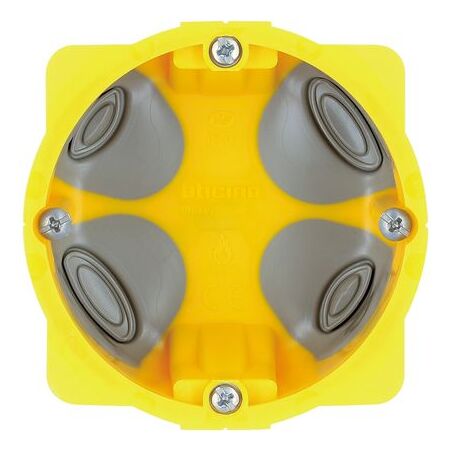

Bticino Living Now 2 Module Plasterboard Box | IP40 Dust Resistant | Flame Resistant Up to 850°C | @Each of 1 | by Bticino
The Bticino Living Now 2 Module Plasterboard Box is designed for secure electrical installations on plasterboard walls. With an IP40 dust rating and flame resistance up to 850°C, it ensures safety and durability. Ideal for both residential and commercial applications, this box features airtight membranes for flexible conduit positioning and is compatible with the 2 Modules Support frame K4702.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bticino Living Now 2 Module Plasterboard Box | IP40 Dust Resistant | Flame Resistant Up to 850°C | @Each of 1 | by Bticino
Brand: Bticino
SKU: PB502N
Alternatively Known As: Plasterboard Mounting Box, Electrical Mounting Box for Plasterboard, 2 Module Electrical Box
Technical Specifications
- Dimensions: 71mm diameter x 51mm depth
- IP Rating: IP40 dust resistant
- Flame resistance: Up to 850°C
- Material: Reinforced with metal clamps and rubber strips
- Compatible with 2 Modules Support frame K4702
- Cleaning: Use only a damp cloth; avoid solvents and cleaning agents
- Dimensions (H x L x W): 51mm x 71mm x 71mm
- Weight: 0.15 kg
Key Features
- Airtight elastic membranes secure conduits in place while allowing flexible positioning
- Reinforced wide flanged metal clamps and rubber strips ensure secure box fixation
- Toolless seal opening for easy conduit insertion
- IP40 dust resistant with elastic membranes preventing dust entry even with conduits inserted
- Flame proof, resistant up to 850 degrees Celsius
- Designed for use with 2 Modules Support frame K4702
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and secure mounting.
Applications
- Installation on plasterboard walls for electrical switches and powerpoints
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and flame-resistant materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Bticino Living Now 2 Module Plasterboard Box 71x51mm is available now for immediate purchase. Ideal for plasterboard wall electrical installations in residential and commercial buildings.
