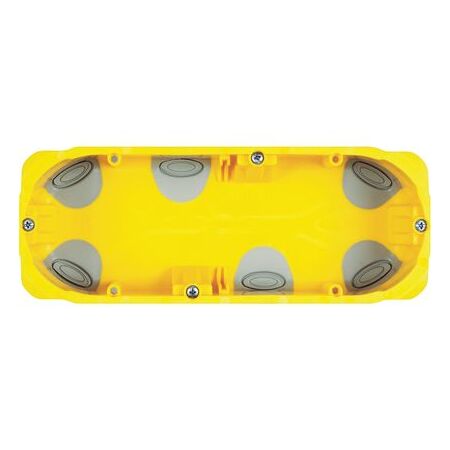

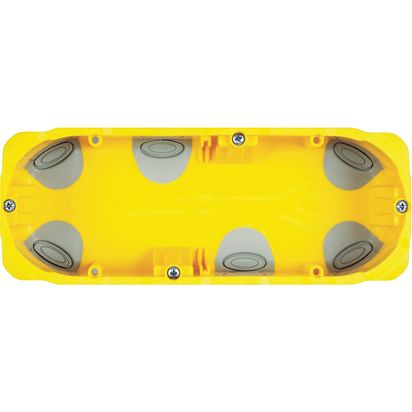

Bticino Living Now 6 Module Plasterboard Box | IP40 Dust Resistant | Flame Proof up to 850°C | Toolless Seal Opening | @Each of 1 | by Bticino
The Bticino Living Now 6 Module Plasterboard Box is designed for efficient electrical mounting on plasterboard walls. With an IP40 dust resistance rating and flame-proof material that withstands temperatures up to 850°C, this box ensures safety and durability. Ideal for both residential and commercial installations, it features airtight elastic membranes for secure conduit fixation and a toolless seal opening for easy access.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bticino Living Now 6 Module Plasterboard Box | IP40 Dust Resistant | Flame Proof up to 850°C | Toolless Seal Opening | @Each of 1 | by Bticino
Brand: Bticino
SKU: PB506N
Alternatively Known As: Electrical Mounting Box, Plasterboard Mounting Box, Living Now Mounting Box, Electrical Wall Box
Technical Specifications
- Material: Flame proof, resistant up to 850°C
- IP Rating: IP40 dust resistant
- Includes airtight elastic membranes for conduit fixation
- Reinforced metal clamps and rubber strips for secure mounting
- Toolless seal opening for conduit insertion
- Compatible with 2 Modules Support frame K4706
- Dimensions (H x L x W): 71mm x 52mm x 183mm
- Weight: 0.35 kg
Key Features
- Airtight elastic membranes secure conduits in place while allowing positional adjustment
- Reinforced wide flanged metal clamps and rubber strips ensure secure box fixation
- Toolless seal opening for easy conduit entry
- IP40 dust resistant with elastic membranes preventing dust entry even with conduits inserted
- Flame proof, resistant up to 850 degrees Celsius
- Designed for quick and simple installation with professional results
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Installation on plasterboard walls for electrical mounting
- Suitable for use with 2 Modules Support frame K4706
- Ideal for residential and commercial electrical switch and power point installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable flame-proof materials reduce replacement frequency and waste
- Dust resistance helps maintain electrical safety and longevity
Warranty Information
1 Year Warranty
Available Now
The Bticino Living Now 6 Module Plasterboard Box is available now for immediate purchase. Ideal for plasterboard wall electrical installations in residential and commercial buildings.
