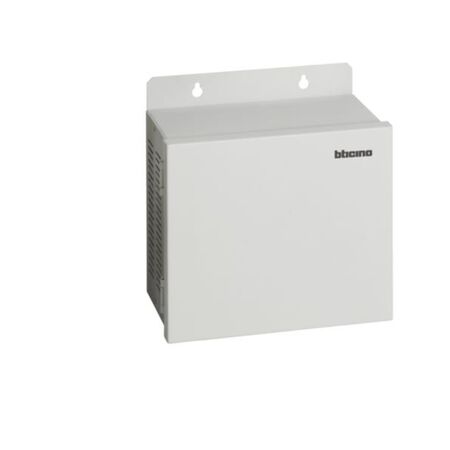

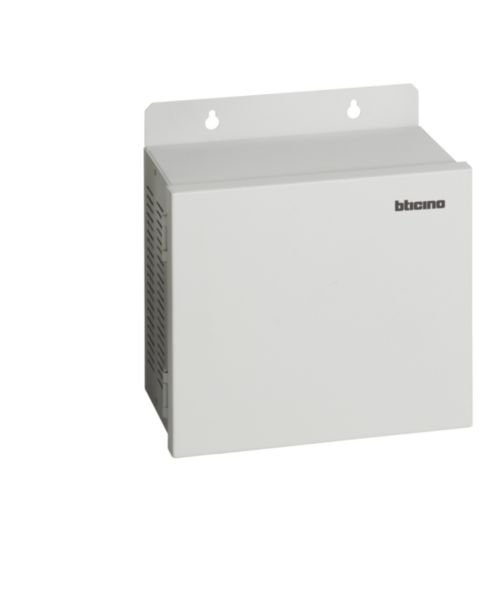

Bticino Power Supply 100W | 24V Output | 4500mA Max Current | IP30 Rated | @EA of 1 | by Bticino
The Bticino Power Supply 100W delivers reliable 24V output with a maximum current of 4500mA, making it ideal for powering PoE switches and IP system accessories in commercial and industrial environments. With an IP30 rating and robust metal enclosure, this power supply ensures durability and efficient energy conversion, perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bticino Power Supply 100W | 24V Output | 4500mA Max Current | IP30 Rated | @EA of 1 | by Bticino
Brand: Bticino
SKU: 375005
Alternatively Known As: 100W PoE Power Supply, Bticino 24V Power Adapter, Bticino PoE Switch Power Supply
Technical Specifications
- Input voltage: 240 V AC
- Frequency: 50-60 Hz
- Output voltage: 24 V DC
- Maximum output current: 4500 mA
- Degree of protection: IP30
- Operating temperature: -10 to 55 °C
- Storage temperature: -25 to 70 °C
- Supply current: 0.75-4.5 A
- Connection type: Screwed terminal
- Dimensions (H x L x W): 167mm x 85mm x 161mm
- Weight: 1.5 kg
Key Features
- Output voltage: 24 V
- Maximum output current: 4500 mA
- Input voltage: 240 V AC
- Frequency: 50-60 Hz
- Degree of protection: IP30
- Operating temperature range: -10 to 55 °C
- Storage temperature range: -25 to 70 °C
- Connection type: Screwed terminal
- Supplied in a robust metal box
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Power supply for PoE switches and other IP system accessories
- Suitable for industrial and commercial electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient power conversion reduces energy waste
- Durable metal enclosure extends product lifespan, reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Bticino for specific warranty details.
Available Now
The Bticino Power Supply 100W is available for immediate purchase, ideal for powering PoE switches and IP system accessories in commercial and industrial settings.
