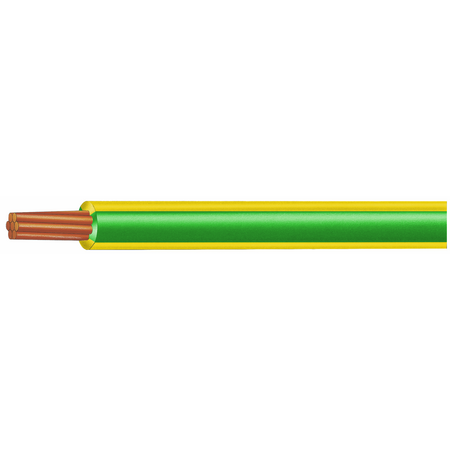

Building Wire 19/1.53, 35mm B.W Green/Yellow 100m Electra
Electra 19/1.53, 35mm B.W building wire features a green/yellow sheath, sold as a 100m roll. Ideal for switchboard wiring and general circuits.
Sign in
Please login to continue to your account.
Product Name/Title: Electra Building Wire 35mm Green/Yellow | PVC Insulation | 450/750V Rated | Flame Retardant | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: SR1350-100G/Y
Alternatively Known As: 35mm earth cable, 35mm green yellow wire, 35mm earthing wire, 35mm building wire, Electra 35mm earth cable
- Conductor: Plain annealed copper, single core
- Cross-sectional area: 35mm²
- Insulation: PVC, Green/Yellow
- Voltage rating: 450/750V
- Operating temperature: -15°C to +90°C
- Complies with AS/NZS 5000.1
- Flame retardant and UV resistant
- Dimensions (H x L x W): 12mm x 10000mm x 12mm
- Weight: 4.2 kg
- 35mm² cross-sectional area for high current capacity
- Green/Yellow insulation for earth/ground identification
- Single core copper conductor
- PVC insulated for durability and safety
- Suitable for fixed wiring in buildings
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
- Residential and commercial electrical installations
- Earthing and grounding systems
- Switchboards and distribution boards
- Industrial wiring projects
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables with extruded insulation
- PVC insulation is lead-free and RoHS compliant
- Durable construction reduces need for frequent replacement
- Copper conductor is recyclable
12 months warranty against manufacturing defects.
Electra Building Wire 35mm Green/Yellow is available for immediate purchase. Ideal for earthing and general electrical wiring in residential, commercial, and industrial installations.
Q: What is this 35mm green/yellow cable used for?
A: It's suitable for earthing and grounding systems, switchboards and distribution boards, and general fixed wiring in residential, commercial, and industrial projects.
Q: Is this cable compliant with Australian wiring standards?
A: Yes, it complies with AS/NZS 3000 wiring rules and AS/NZS 5000.1 for electric cables with extruded insulation, and comes with a 12-month warranty against manufacturing defects.
For higher-capacity earthing runs, a 50mm green/yellow building wire with high conductivity copper is also available.
Smaller earthing requirements can be covered with a 25mm earth green yellow building wire using stranded copper conductors.
Connections on this conductor size can be made using a copper sleeve rated for 35mm2 tin plated terminations.
Backed by SCHNAP's 30-day returns policy for added purchasing confidence.
