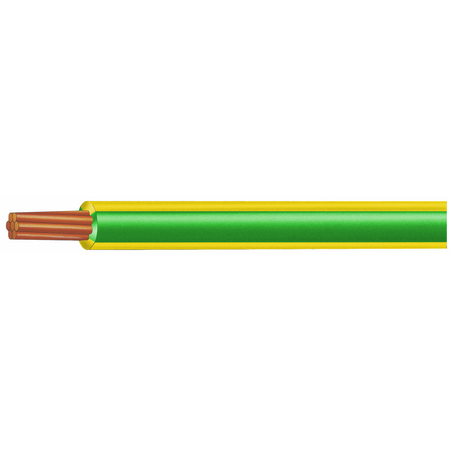

Building Wire 37/2.03 120MM B/W Green/Yellow 100m Electra
Electra 37/2.03 120MM B/W building wire features a green/yellow sheath, sold as a 100m roll. Ideal for switchboard wiring and general circuits.
Sign in
Please login to continue to your account.
Product Name/Title: Electra Building Wire 120mm Green/Yellow | Stranded Copper | PVC Insulation | 0.6/1kV Rated | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: SR11200-100G/Y
Alternatively Known As: 120mm earth cable, 120mm green/yellow building wire, 120mm earthing wire, 120mm earth conductor, Electra 120mm cable
- Conductor: Stranded copper
- Cross-sectional area: 120mm²
- Insulation: PVC, Green/Yellow
- Voltage rating: 0.6/1kV
- Operating temperature: -15°C to +90°C
- Complies with AS/NZS 5000.1
- Flame retardant and UV resistant
- Dimensions (H x L x W): 20mm x 100000mm x 20mm
- Weight: 13.5 kg
- 120mm² cross-sectional area for high current capacity
- Green/Yellow insulation for earth/ground identification
- Manufactured to Australian standards for safety and reliability
- Flexible stranded copper conductor for easy installation
- PVC insulation for durability and protection
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
- Residential and commercial electrical installations
- Industrial power distribution
- Earthing and bonding applications
- Suitable for use in switchboards, control panels, and general wiring
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables for working voltages up to and including 0.6/1kV
- Long-lasting, durable construction reduces replacement frequency and waste
- PVC insulation is lead-free and compliant with RoHS directives
12 months warranty against manufacturing defects.
Electra Building Wire 120mm Green/Yellow is available for immediate purchase. Ideal for high-capacity earthing and electrical installations in residential, commercial, and industrial settings.
Q: What is this 120mm green/yellow cable used for?
A: It's designed for earthing and bonding applications, residential and commercial electrical installations, industrial power distribution, and general wiring in switchboards and control panels.
Q: Does this cable meet Australian electrical standards?
A: Yes, it complies with AS/NZS 3000 wiring rules and AS/NZS 5000.1 for electric cables rated up to 0.6/1kV, and is backed by SCHNAP's 30-day return policy.
For smaller earthing runs, a 25mm green and yellow building wire cable covers lighter-duty bonding applications.
Terminations on stranded conductors of this size are commonly secured using a copper sleeve for tin plated high conductivity connections.
A 95mm green/yellow stranded copper building wire with V-90HT insulation is available for adjacent earthing requirements.
Order with confidence — SCHNAP offers a 30-day return policy on electrical products.
