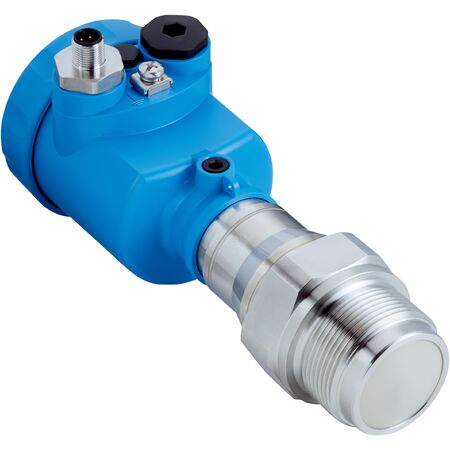

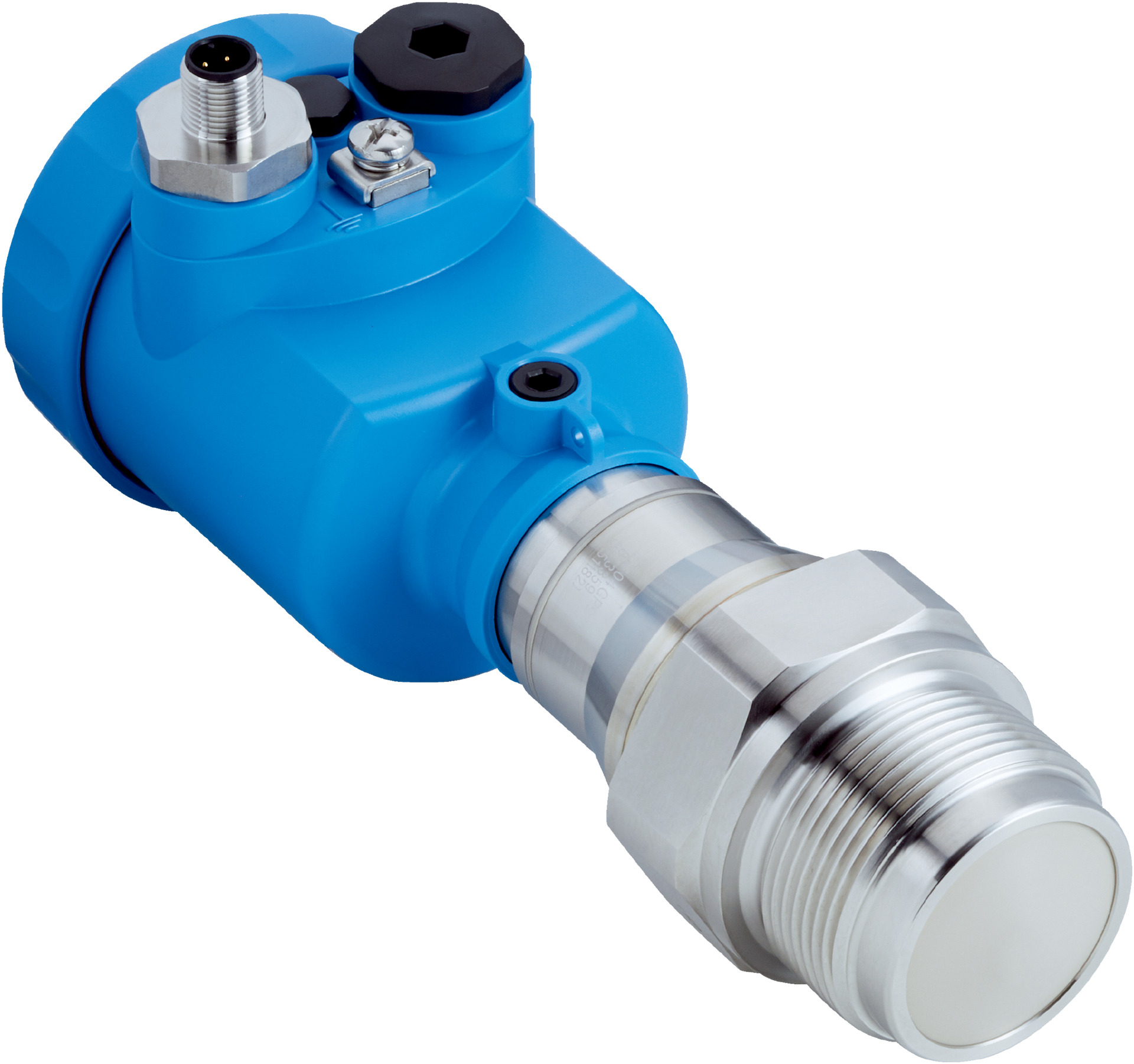

Bulk Solids Level Sensor | Continuous Measurement | ATEX Certified | High Accuracy | by SICK
The Bulk Solids Level Sensor offers continuous measurement with high accuracy (≤ 5 mm), making it ideal for industrial processes involving bulk solids. Designed for harsh environments, it features a durable PEEK probe and operates within a process temperature range of -40 °C to +200 °C. With ATEX certification, this sensor ensures safety in hazardous areas, providing reliable performance for critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 150mm x 200mm x 80mm
- Weight: 2 kg
Key Features
- Continuous measurement of bulk solids with high accuracy (≤ 5 mm)
- Probe with integrated horn antenna made from durable PEEK material
- Frequency band: W-band (75 to 85 GHz) for precise sensing
- Measuring range up to 120 m, recommended up to 20 m for thread version
- Process pressure range from -1 bar to 20 bar
- Process temperature range from -40 °C to +200 °C
- ATEX II 1D, 1/2D, 1/3D, 2D certified for hazardous environments
- HART communication interface with 4-20 mA output signal
- Robust aluminum single-chamber housing with IP66/IP68 protection
- Integrated display and pushbutton control for easy operation
- Short-circuit protection and isolation for electrical safety
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety and operational standards, especially in hazardous areas.
Applications
- Bulk solids continuous level measurement in industrial processes
- Suitable for use in harsh environments with process pressures up to 20 bar
- Ideal for applications requiring ATEX certified equipment in hazardous areas
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable materials and robust design reduce need for frequent replacements
- Energy-efficient operation with low start-up current (< 3.6 mA)
- RoHS compliant, minimizing hazardous substances in manufacturing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LBR-ARUTCB2HAAX sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications requiring high accuracy and hazardous area certification.
