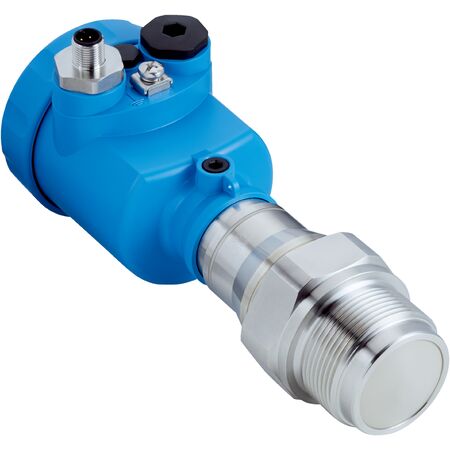

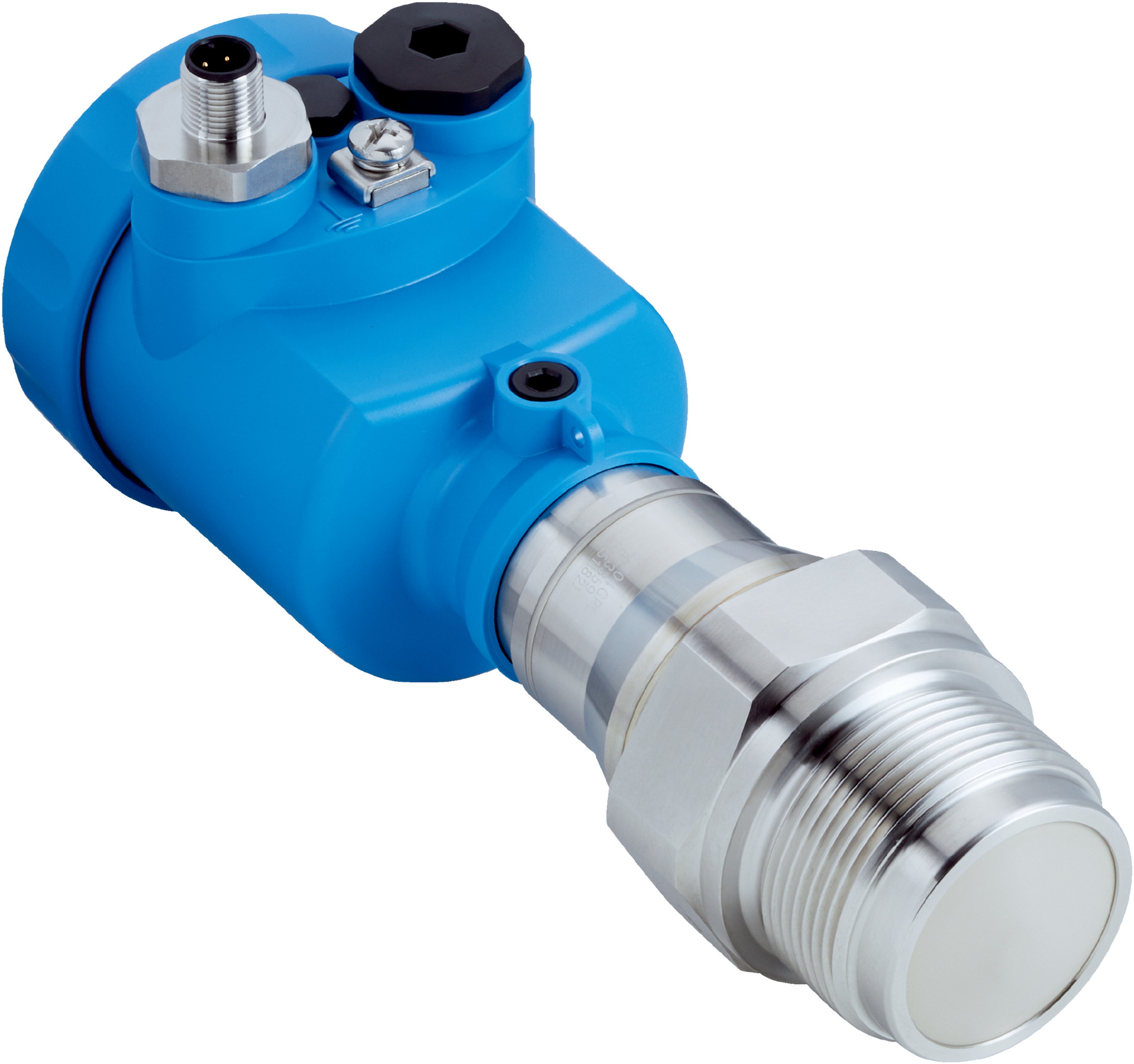

Bulk Solids Level Sensor | Continuous Measurement up to 120m | Bluetooth Control & IP66/IP68 Rated | by SICK
The Bulk Solids Level Sensor offers continuous measurement of bulk solids with a range up to 120 meters, making it ideal for industrial processes. Designed for harsh environments, it features Bluetooth control and an IP66/IP68 rated enclosure for superior protection against dust and water. With high accuracy and a robust design, this sensor is perfect for applications requiring precise level measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 150mm x 200mm x 80mm
- Weight: 2 kg
Key Features
- Continuous measurement of bulk solids with a measuring range up to 120 m
- Thread probe with integrated horn antenna made from PEEK
- Frequency band: W-band (75 to 85 GHz)
- Process pressure range: -1 bar to 20 bar
- Process temperature range: -40 °C to +130 °C
- Bluetooth magnet pin operation for control
- HART communication interface
- High accuracy sensor element with ≤ 5 mm accuracy
- IP66 / IP68 rated enclosure for protection against dust and water
- Short-circuit protection and isolation included
- Display installed for easy monitoring
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Continuous measurement of bulk solids in industrial processes
- Suitable for use in harsh environments with process pressures up to 20 bar
- Ideal for applications requiring precise level measurement with Bluetooth control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- RoHS certified ensuring restriction of hazardous substances
- Durable materials and design reduce waste and replacement frequency
- Energy efficient operation with low start-up current (< 3.6 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LBR-XXTTCAMHAKX sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications.
