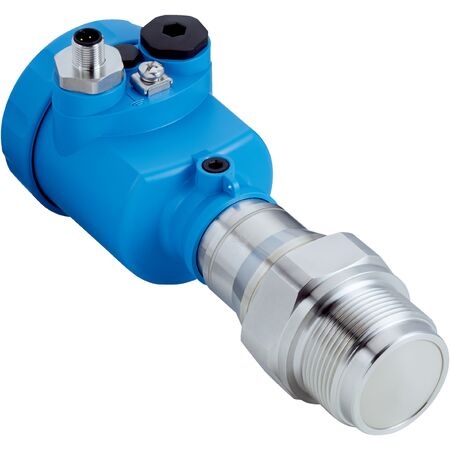

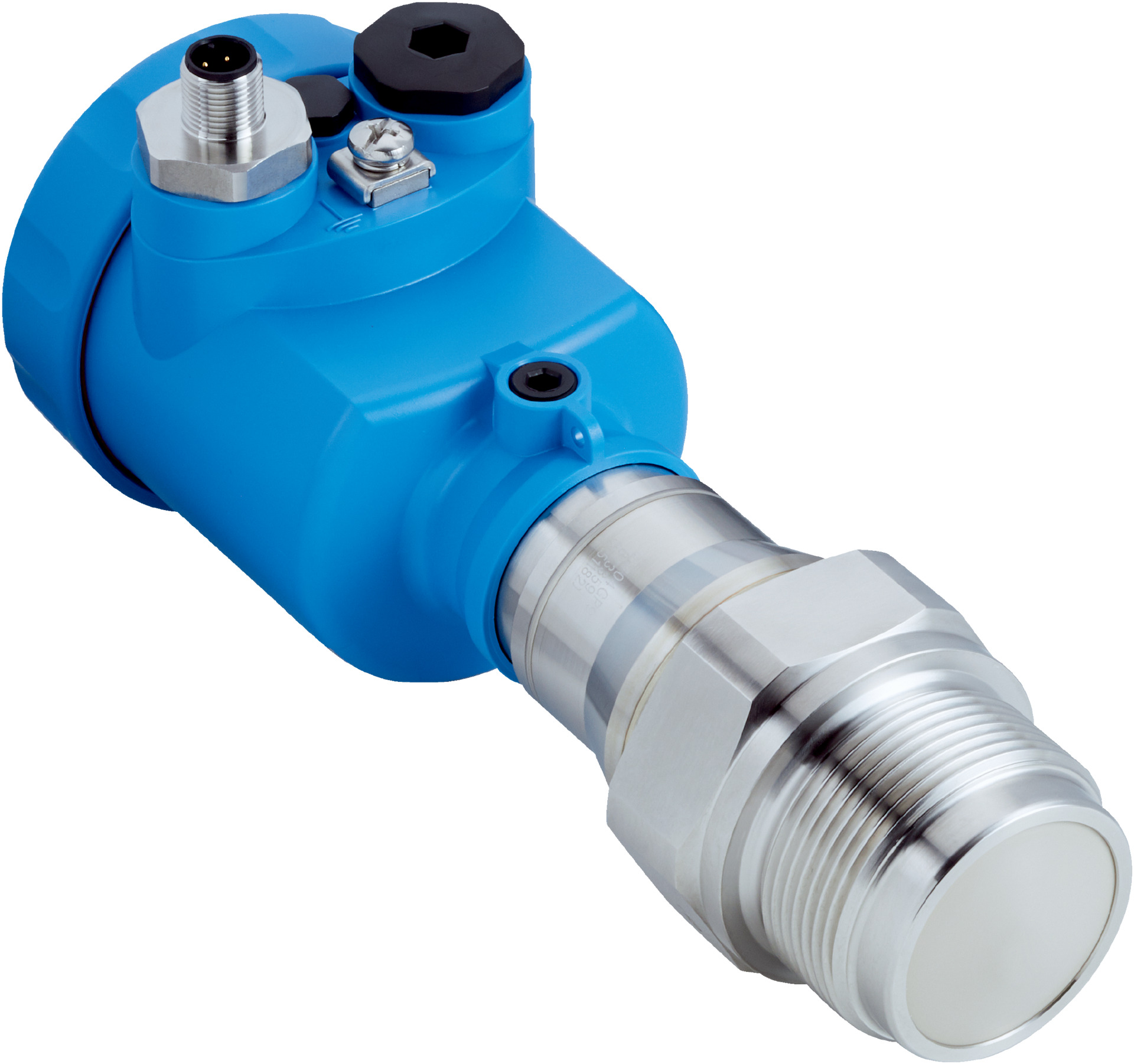

Bulk Solids Level Sensor | Continuous Measurement | Durable PEEK Antenna | IP67 Rated | by SICK
The Bulk Solids Level Sensor offers continuous measurement of bulk solids with high accuracy, making it ideal for industrial processes. With a durable PEEK antenna and an IP67 rated enclosure, this sensor is built to withstand harsh environments while providing reliable performance. Perfect for process control in manufacturing and material handling, it ensures precise sensing up to 120 m.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 150mm x 60mm x 60mm
- Weight: 1.5 kg
Key Features
- Continuous measurement of bulk solids with high accuracy
- Probe with integrated horn antenna made from durable PEEK material
- Frequency band W-band (75 to 85 GHz) for precise sensing
- Measuring range up to 120 m, recommended up to 20 m for thread version
- Process pressure range from -1 bar to 20 bar
- Operating temperature range from -40 °C to +130 °C
- HART communication interface with 4 mA to 20 mA output
- IP67 rated enclosure for protection against dust and water
- Display installed with pushbutton operation for easy control
- Short-circuit protection and isolation for safety
- RoHS compliant and multiple international certifications
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Continuous measurement of bulk solids in industrial processes
- Suitable for use in harsh environments with process pressures up to 20 bar
- Ideal for process control in manufacturing and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable materials and long MTBF (3.37 million hours) reduce waste and replacement frequency
- Energy-efficient operation with low start-up current (<3.6 mA)
- Complies with RoHS and China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LBR-XXTTCAMHKAX sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications requiring high accuracy and robust performance.
