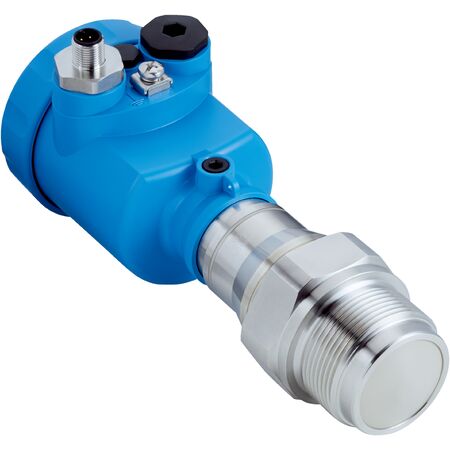

Bulk Solids Level Sensor | Continuous Measurement | IP67 Rated | Bluetooth Enabled | by SICK
The Bulk Solids Level Sensor offers continuous measurement of bulk solids with high accuracy, making it ideal for industrial processes. With a robust aluminum housing and an IP67 rating, this sensor withstands harsh environments while providing reliable performance. Its Bluetooth functionality allows for easy control, ensuring efficient monitoring in storage silos and hoppers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement: Continuous bulk solids level
- Probe type: Thread with integrated horn antenna made from PEEK
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: Up to 120 m, recommended up to 20 m for thread version
- Angle of dispersion: 7°
- Process pressure: -1 bar to 20 bar
- Process temperature: -40 °C to +200 °C
- Accuracy: ≤ 5 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Communication interface: HART
- Supply voltage: 9 V DC to 30 V DC
- Protection class: I (IEC 61010-1)
- Connection type: M20 x 1.5 / plug connector M12 x 1 pin assignment B
- Output signal: 4 mA to 20 mA / HART
- Enclosure rating: IP67
- Housing material: Aluminum die cast AlSi10Mg, powder-coated
- Sealing material: FKM
- Antenna material: PEEK
- Bluetooth: Yes
- Display: Installed
- Dimensions (H x L x W): 150mm x 200mm x 80mm
- Weight: 2.5 kg
Key Features
- Continuous measurement of bulk solids with high accuracy
- Thread probe with integrated horn antenna made from PEEK
- Frequency band W-band (75 to 85 GHz) for precise sensing
- Measuring range up to 120 m, recommended up to 20 m for thread version
- Bluetooth magnet pin operation for easy control
- HART communication interface for integration
- Robust aluminum die cast housing with powder coating
- IP67 rated enclosure for protection against dust and water
- Wide process temperature range from -40 °C to +200 °C
- Process pressure tolerance from -1 bar to 20 bar
- RoHS compliant and multiple international certifications
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor setup and electrical safety standards.
Applications
- Bulk solids level measurement in industrial processes
- Continuous monitoring in storage silos and hoppers
- Process control in manufacturing involving bulk materials
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient process control reducing material waste
- Durable design minimizes replacement frequency and waste
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LBR-XXTTCBBHKKX sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications.
