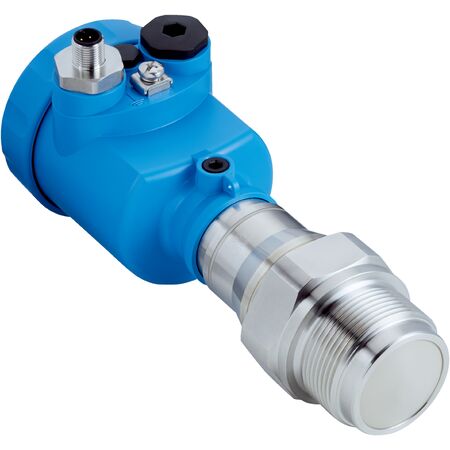

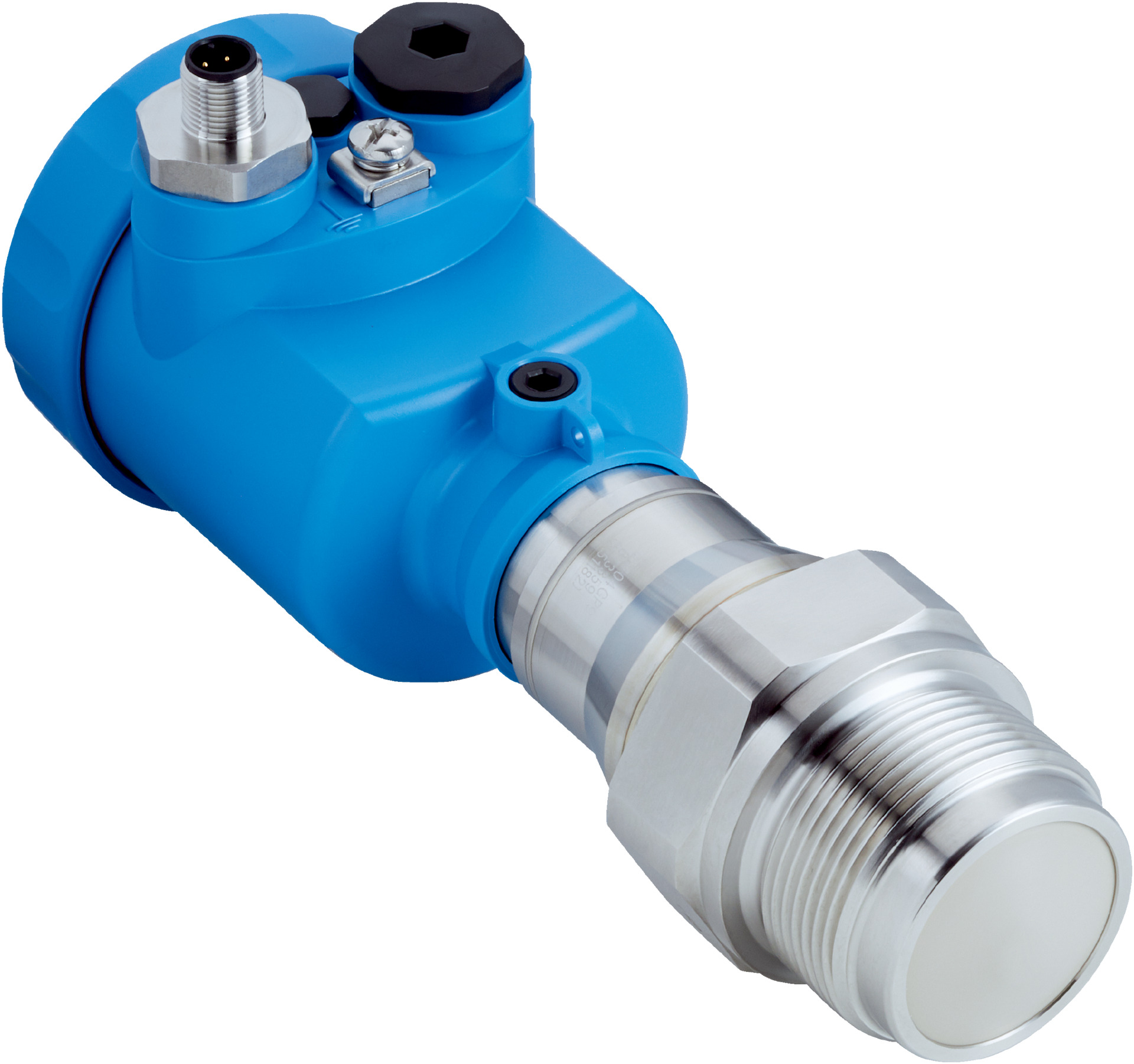

Bulk Solids Level Sensor | Continuous Measurement | PEEK Antenna | IP67 Rated | by SICK
The Bulk Solids Level Sensor offers continuous measurement of bulk solids with high accuracy, making it ideal for industrial processes. With a robust PEEK antenna and an IP67 rated enclosure, this sensor is built for durability and reliability in challenging environments. Perfect for monitoring storage silos and hoppers, it ensures optimal material usage and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement: Continuous
- Probe type: Thread with integrated horn antenna made from PEEK
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: Up to 120 m, recommended up to 20 m in thread version
- Angle of dispersion: 7°
- Process pressure: -1 bar to 20 bar
- Process temperature: -40 °C to +130 °C
- ATEX approval: IEC Ex db IIC T6...T1, Ga/Gb, Gb
- Type examination: IECEx KIWA 20.0014X
- RoHS certificate: Yes
- HART communication: Yes
- Display: Installed with pushbutton operation
- Accuracy: ≤ 5 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Supply voltage: 9 V DC to 30 V DC
- Protection class: I (IEC 61010-1)
- Connection type: ½" NPT / cable gland PA (5 mm - 9 mm)
- Output signal: 4 mA to 20 mA / HART
- Contamination rating: 4
- Enclosure rating: IP67
- EMC: EN 61326-1
- Start-up current: < 3.6 mA
- Overvoltage category: III (IEC 61010-1)
- Short-circuit protection: Yes
- Isolation: Yes
- Process connection: Thread 1 ½'' NPT PN20, ASME B1.20.1 / 316L
- Housing material: Aluminum die cast AlSi10Mg, powder-coated
- Sealing material: FKM (SHS FPM 70C3 GLT)
- Antenna material: PEEK
- Ambient operating temperature: -40 °C to +80 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 200mm x 80mm
- Weight: 2 kg
Key Features
- Continuous measurement of bulk solids with high accuracy
- Thread with integrated horn antenna made from durable PEEK material
- W-band frequency operation within 75 to 85 GHz
- Measuring range up to 120 m, recommended up to 20 m for thread version
- Process pressure tolerance from -1 bar to 20 bar
- Wide process temperature range from -40 °C to +130 °C
- ATEX approved for hazardous environments
- Integrated display with pushbutton operation
- HART communication interface for easy integration
- Robust aluminum die cast housing with powder coating
- IP67 rated enclosure for protection against dust and water
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids level measurement in industrial processes
- Continuous monitoring in storage silos and hoppers
- Process control in manufacturing and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Continuous monitoring helps optimize material usage and reduce waste
- Durable materials and long MTBF reduce replacement frequency and waste
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LBR-ICTTDAJHKAX sensor is available for immediate purchase, ideal for industrial bulk solids measurement and process control applications.
