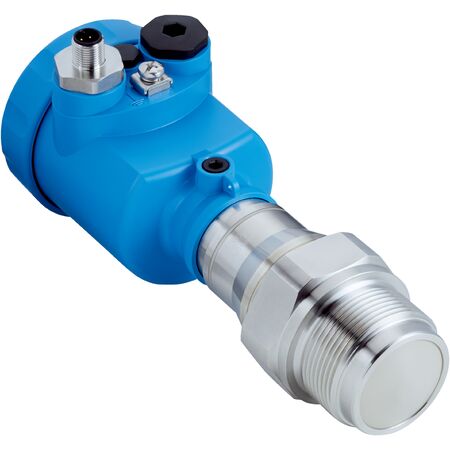

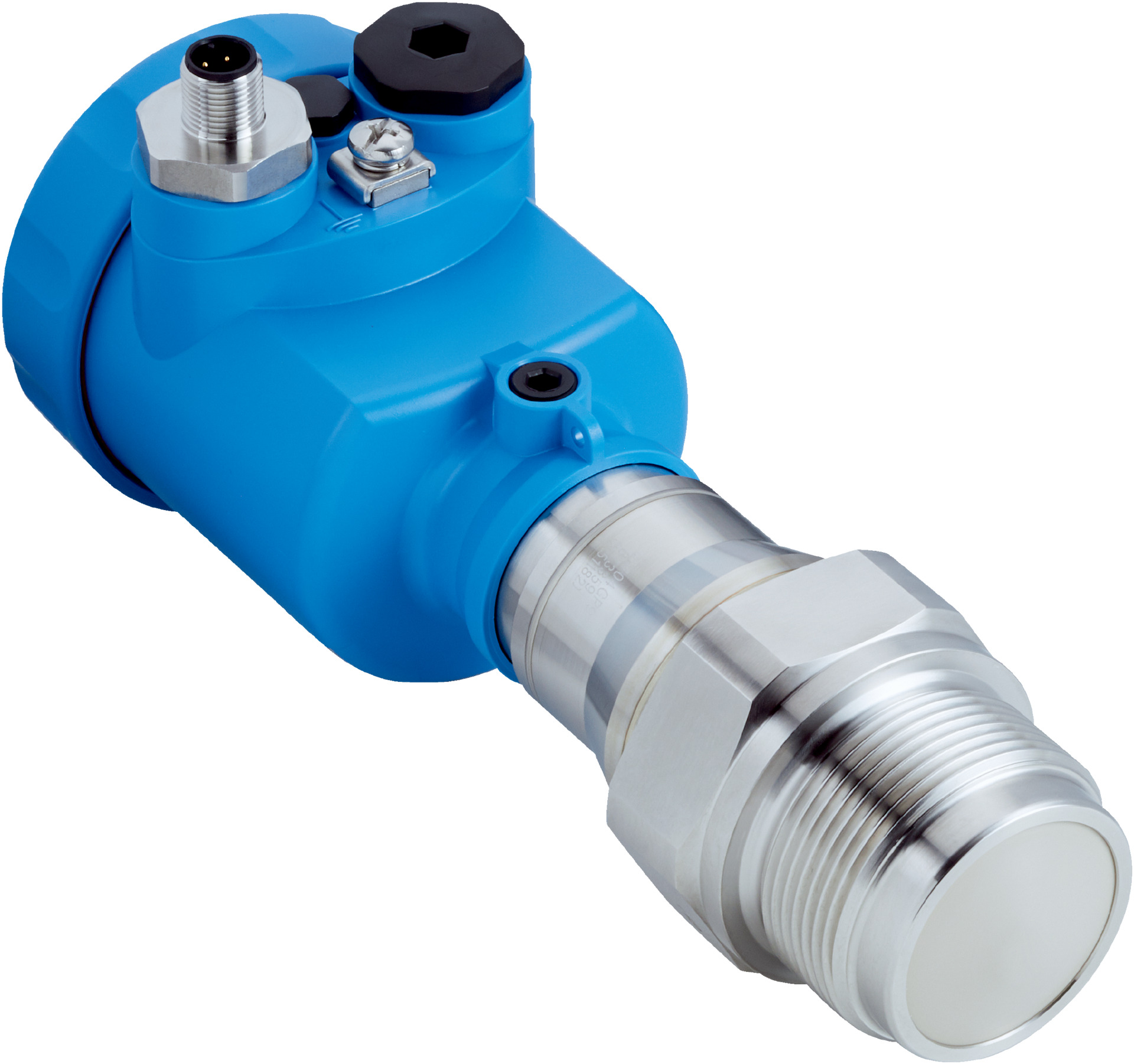

Bulk Solids Level Sensor | Continuous Measurement | W-band Frequency | ATEX Approved | by SICK
The Bulk Solids Level Sensor is designed for continuous measurement of bulk solids in industrial processes, utilizing W-band frequency for high accuracy. With a robust aluminum housing and IP67 protection, it's ideal for harsh environments and applications requiring reliable level measurement. This sensor is ATEX approved for hazardous areas, ensuring safety and compliance in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 150mm x 200mm x 80mm
- Weight: 2 kg
Key Features
- Continuous measurement of bulk solids using W-band frequency (75–85 GHz)
- Probe with integrated horn antenna made from PEEK for durability
- Measuring range up to 120 m, recommended up to 20 m for thread version
- High accuracy sensor element with ≤ 5 mm accuracy and ≤ 1 mm non-repeatability
- Process pressure range from –1 bar to 20 bar and temperature range from –40 °C to +200 °C
- ATEX approved for hazardous areas (IECEx db IIC T6...T1, Ga/Gb, Gb)
- HART communication interface with 4 mA to 20 mA output signal
- Robust aluminum die cast housing with powder coating and IP67 protection
- Integrated display and pushbutton control for easy operation
- Short-circuit protection and isolation for electrical safety
Professional Installation Requirements
- Installation by qualified personnel is required, especially for hazardous area compliance and correct process connection.
Applications
- Continuous measurement of bulk solids in industrial processes
- Suitable for use in harsh environments with process pressures up to 20 bar
- Ideal for applications requiring high accuracy and reliability in bulk solids level measurement
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable materials and long MTBF (3.37 million hours) reduce waste and replacement frequency
- Energy efficient operation with low start-up current (< 3.6 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LBR-ICTTCBMHKAX sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications requiring high accuracy and hazardous area compliance.
