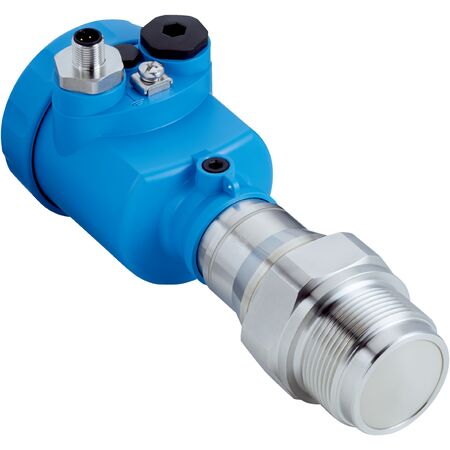

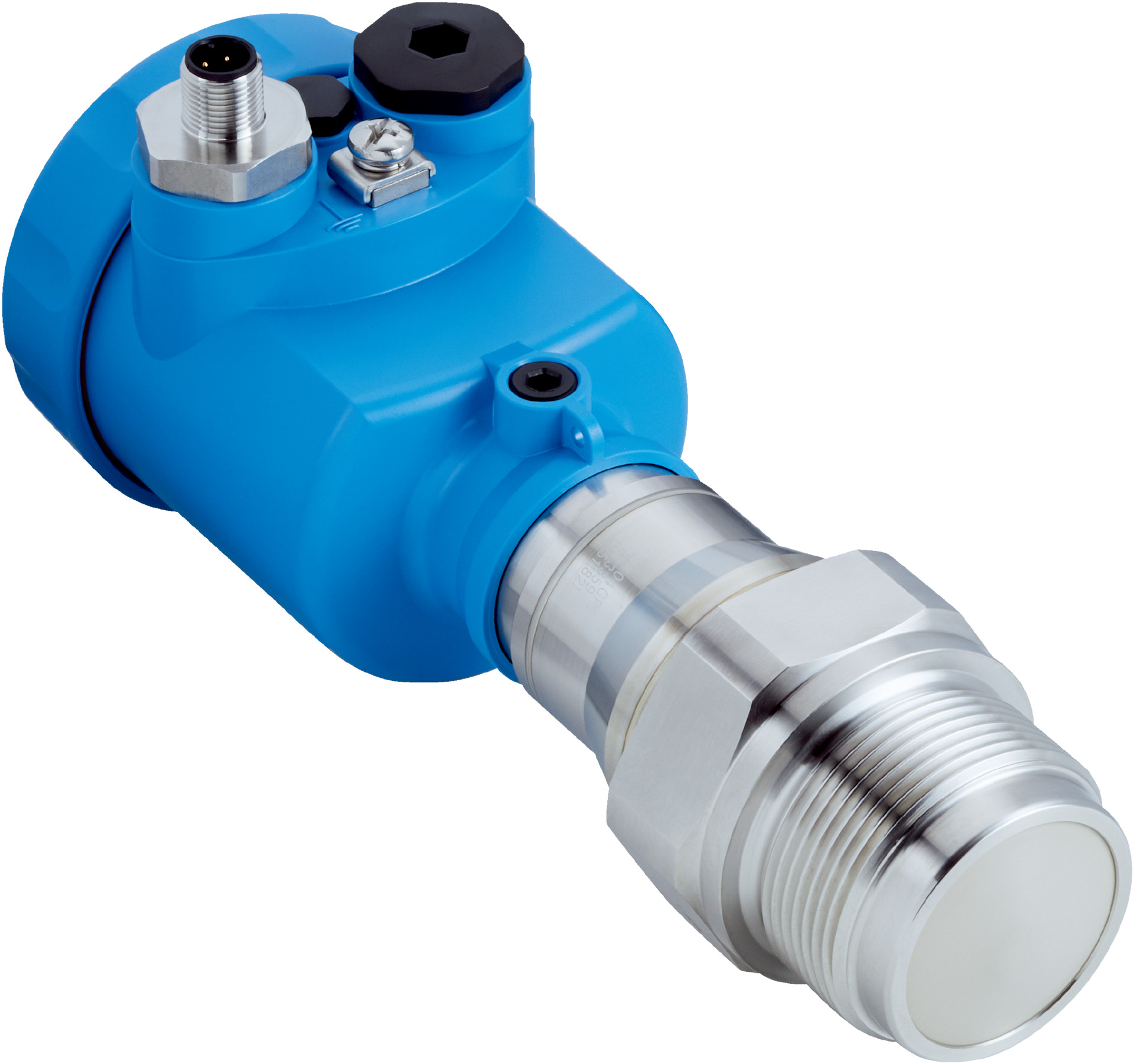

Bulk Solids Level Sensor | Continuous Measurement | W-band Frequency | ATEX Approved | by SICK
The Bulk Solids Level Sensor is designed for continuous measurement of bulk solids, utilizing W-band frequency technology for precise readings. With a robust aluminum housing and IP67 protection, it operates effectively in harsh environments, making it ideal for industrial applications requiring high accuracy and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement: Continuous
- Probe type: Thread with integrated horn antenna made from PEEK
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: Up to 120 m, recommended up to 20 m for thread version
- Angle of dispersion: 7°
- Process pressure: -1 bar to 20 bar (-100 kPa to 2000 kPa)
- Process temperature: -40 °C to +200 °C
- ATEX approval: IEC Ex db IIC T6...T1, Ga/Gb, Gb
- Type examination: IECEx KIWA 20.0014X
- RoHS certificate: Yes
- HART communication: Yes
- Display: Installed with pushbutton operation
- Accuracy: ≤ 5 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Supply voltage: 9 V DC to 30 V DC
- Protection class: I (IEC 61010-1)
- Connection type: ½" NPT / cable gland PA (5 mm - 9 mm)
- Output signal: 4 mA to 20 mA / HART
- Contamination rating: 4
- Enclosure rating: IP67
- EMC: EN 61326-1
- Start-up current: < 3.6 mA
- Overvoltage category: III (IEC 61010-1)
- Short-circuit protection: Yes
- Isolation: Yes
- Process connection: Thread 1 ½'' NPT PN20, ASME B1.20.1 / 316L
- Housing material: Aluminum die cast AlSi10Mg, powder-coated
- Sealing material: FKM (SHS FPM 70C3 GLT)
- Antenna material: PEEK
- Ambient operating temperature: -40 °C to +80 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 60mm x 60mm
- Weight: 2.5 kg
Key Features
- Continuous measurement of bulk solids using W-band frequency (75-85 GHz)
- Probe type: Thread with integrated horn antenna made from PEEK
- Measuring range up to 120 m, recommended up to 20 m for thread version
- Process pressure range from -1 bar to 20 bar
- Process temperature range from -40 °C to +200 °C
- ATEX approved for hazardous areas (IEC Ex db IIC T6...T1, Ga/Gb, Gb)
- HART communication interface with installed display and pushbutton control
- High accuracy sensor element with ≤ 5 mm accuracy and ≤ 1 mm non-repeatability
- Robust aluminum die cast housing with powder coating and IP67 protection
- Short-circuit protection and isolation for electrical safety
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with hazardous area equipment and electrical safety standards.
Applications
- Continuous measurement of bulk solids in industrial processes
- Suitable for use in harsh environments with process pressures up to 20 bar
- Ideal for applications requiring high accuracy level measurement in bulk solids
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Enables precise measurement to optimize material usage and reduce waste
- Robust design reduces need for frequent replacements, minimizing waste
- Complies with RoHS directive ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LBR-ICTTDBJHKAX sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications.
