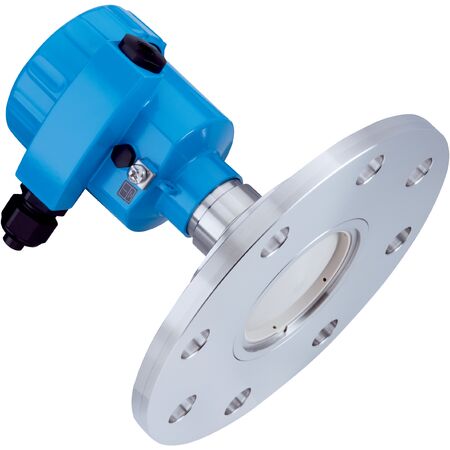

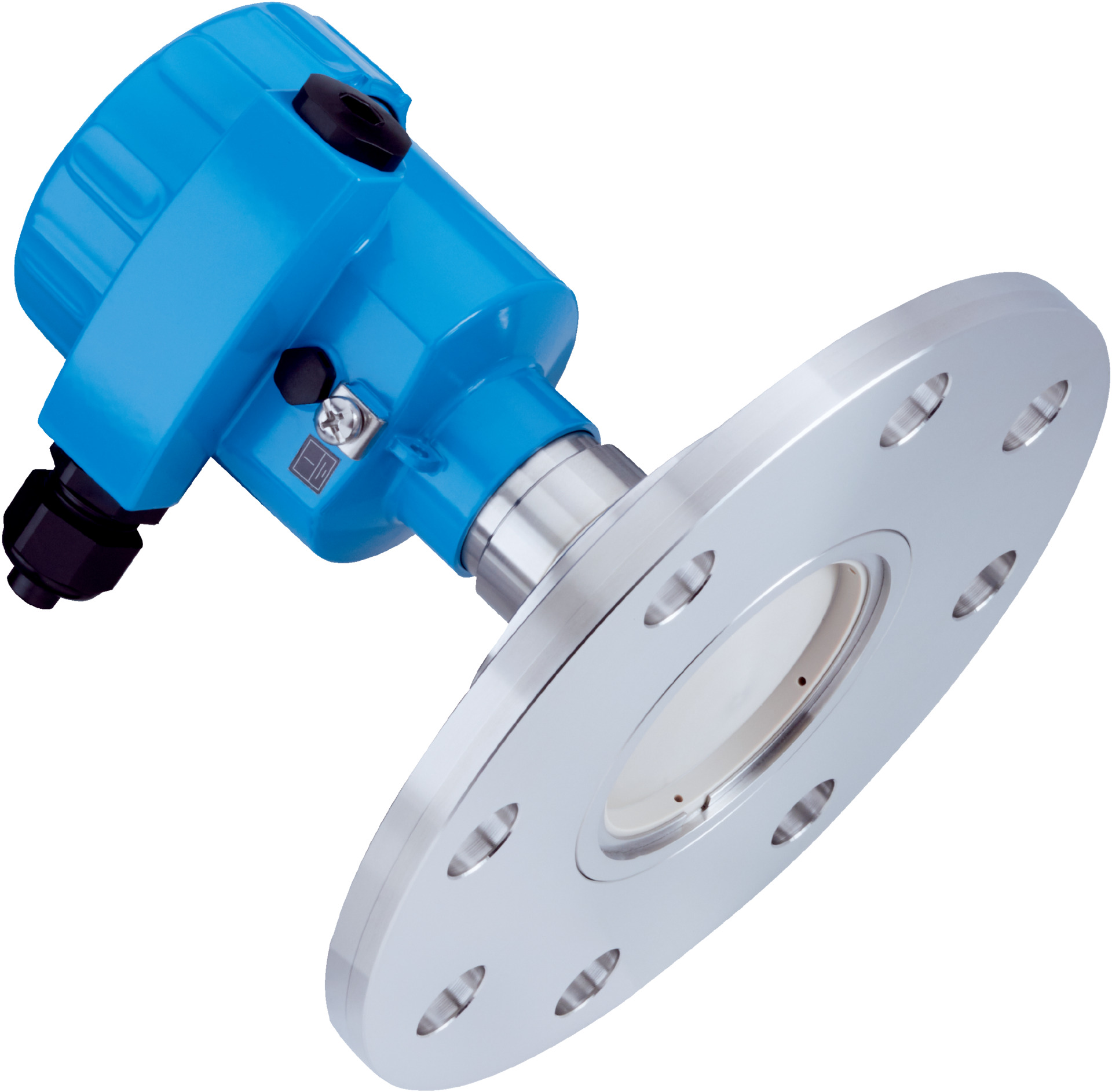

Bulk Solids Level Sensor | Continuous Measurement | W-band Radar Technology | IP66/IP68 Protection | by SICK
The Bulk Solids Level Sensor is designed for continuous measurement of bulk solids, utilizing advanced W-band radar technology for high accuracy up to 120 m. With a robust aluminum housing and IP66/IP68 protection, it's perfect for harsh industrial environments. Ideal for applications requiring precise level measurement, this sensor ensures reliable performance and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement: Continuous
- Probe type: Metal jacketed lens antenna / PEEK with air purge connection
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: Up to 120 m, recommended up to 20 m with integrated horn antenna
- Angle of dispersion: 4°
- Process pressure: -1 bar to 3 bar (-100 kPa to 300 kPa)
- Process temperature: -40 °C to +130 °C
- Accuracy of sensor element: ≤ 5 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Communication interface: HART
- Supply voltage: 9 V DC to 30 V DC
- Protection class: I (IEC 61010-1)
- Connection type: M20 x 1.5 / cable gland PA black (5 mm - 9 mm)
- Output signal: 4 mA to 20 mA / HART
- Contamination rating: 4
- Enclosure rating: IP66 / IP68
- EMC: EN 61326-1
- Start-up current: < 3.6 mA
- Overvoltage category: III (IEC 61010-1)
- Short-circuit protection: Yes
- Isolation: Yes
- Process connection: Swivel holder with flange DN150, PN16, form B, DIN / 316/316L
- Housing material: Aluminum
- Housing design: Single-chamber housing
- Sealing material: FKM (SHS FPM 70C3 GLT)
- Antenna material: PEEK
- Ambient operating temperature: -40 °C to +80 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 300mm x 200mm x 150mm
- Weight: 5 kg
Key Features
- Continuous measurement of bulk solids using W-band frequency (75-85 GHz)
- Metal jacketed lens antenna with PEEK and air purge connection
- Bluetooth magnet pin operation for easy control
- Integrated display for real-time monitoring
- High accuracy sensor element with ≤ 5 mm precision
- Robust aluminum single-chamber housing with IP66/IP68 protection
- Process connection with swivel holder and flange DN150, PN16
- Wide operating temperature range from -40 °C to +130 °C
- HART communication interface for integration and diagnostics
- RoHS compliant and multiple international certifications including EU, UK, ACMA, FDA, and cCSAus
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Continuous measurement of bulk solids in industrial processes
- Suitable for use in harsh environments with process pressures from -1 to 3 bar
- Ideal for applications requiring high accuracy level measurement up to 120 m range
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 61010-1 (IEC 61010-1) for electrical safety
Environmental Benefits
- Bluetooth operation reduces need for physical adjustments, minimizing maintenance-related environmental impact
- High accuracy reduces material waste by improving process control
- Robust design extends product life, reducing replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LBR-XXCSBAMHAKX sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications requiring high accuracy and robust design.
