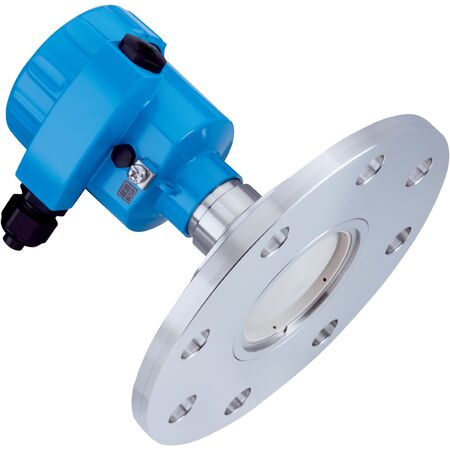

Bulk Solids Level Sensor | Continuous Measurement | W-band Frequency | IP66/IP68 Protection | by SICK
The Bulk Solids Level Sensor offers continuous measurement of bulk solids with high accuracy, making it ideal for industrial storage and process containers. With a robust aluminum housing and IP66/IP68 protection, it operates effectively in harsh environments, ensuring reliable process control in bulk material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 300mm x 150mm x 150mm
- Weight: 5 kg
Key Features
- Continuous measurement of bulk solids with high accuracy
- Metal jacketed lens antenna with PEEK material and air purge connection
- W-band frequency (75 to 85 GHz) for precise detection
- Measuring range up to 120 m, recommended up to 20 m with integrated horn antenna
- Bluetooth magnet pin operation for easy control
- HART communication interface
- Robust aluminum single-chamber housing with IP66/IP68 protection
- Suitable for process pressures from -1 bar to 3 bar and temperatures from -40°C to +130°C
- Display installed for local readout
- Short-circuit protection and isolation included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Measurement of bulk solids in industrial storage and process containers
- Continuous level measurement in harsh environments
- Process control in bulk material handling
Standards & Compliance
- Complies with AS/NZS 61010-1 for electrical equipment safety
- Complies with AS/NZS 61326-1 for EMC requirements
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Long MTBF (3.37 million hours) reduces waste and replacement frequency
- Bluetooth control reduces need for physical adjustments, minimizing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LBR-XXCSAAMHAKX is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
