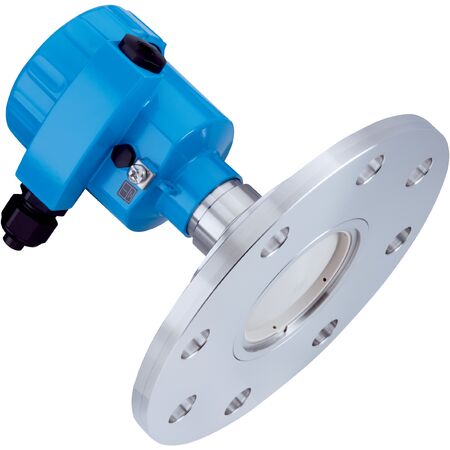

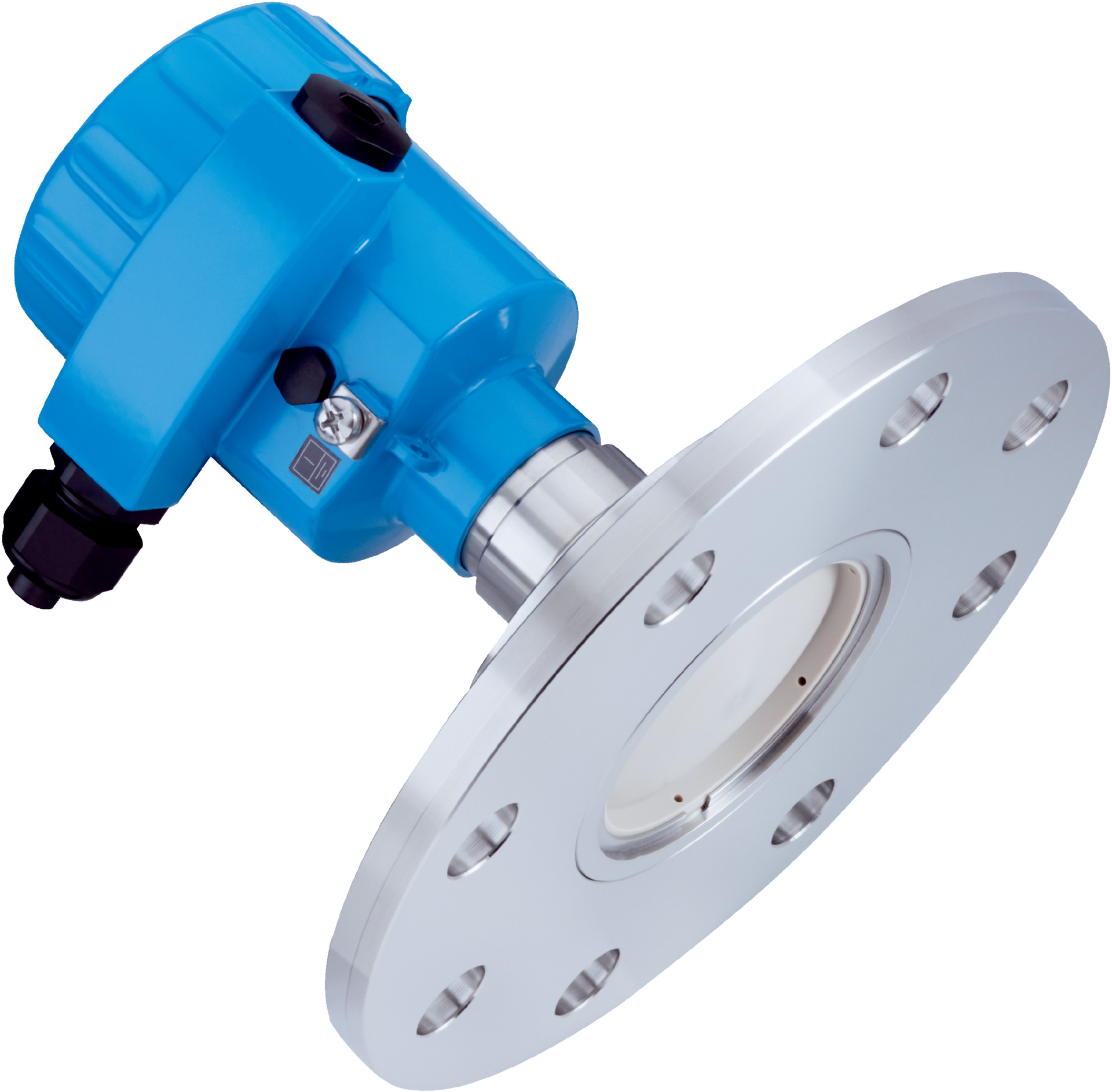

Bulk Solids Level Sensor | Continuous Measurement | W-band Frequency | IP66/IP68 Protection | by SICK
The Bulk Solids Level Sensor offers continuous measurement for bulk solids, utilizing a metal jacketed lens antenna with PEEK and air purge connection. With a measuring range of up to 120 m and high accuracy of ≤ 5 mm, it's perfect for industrial applications requiring reliable performance in harsh environments. Designed for process temperatures from -40 °C to +130 °C, this sensor ensures optimal operation and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement: Continuous
- Probe type: Metal jacketed lens antenna / PEEK with air purge connection
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: Up to 120 m (393.7 ft), recommended 20 m for thread version
- Angle of dispersion: 4°
- Process pressure: -1 bar to 3 bar (-100 kPa to 300 kPa)
- Process temperature: -40 °C to +130 °C
- Accuracy of sensor element: ≤ 5 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Communication interface: HART
- Supply voltage: 9 V DC to 30 V DC
- Protection class: I (IEC 61010-1)
- Connection type: ½" NPT / cable gland PA (ø 5 mm - 9 mm)
- Output signal: 4 mA to 20 mA / HART
- Contamination rating: 4
- Enclosure rating: IP66 / IP68
- EMC: EN 61326-1
- Start-up current: < 3.6 mA
- Overvoltage category: III (IEC 61010-1)
- Short-circuit protection: Yes
- Isolation: Yes
- Process connection: Swivel holder with flange DN100, PN16, form B, DIN / 316/316L
- Housing material: Aluminum
- Sealing material: FKM (SHS FPM 70C3 GLT)
- Antenna material: PEEK
- Ambient operating temperature: -40 °C to +80 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 200mm x 300mm x 150mm
- Weight: 5 kg
Key Features
- Continuous measurement of bulk solids using metal jacketed lens antenna with PEEK and air purge connection
- Frequency band: W-band (75 to 85 GHz) for precise sensing
- Measuring range up to 120 m, with recommended range of 20 m for thread version
- High accuracy sensor element with ≤ 5 mm accuracy and ≤ 1 mm non-repeatability
- Robust aluminum single-chamber housing with IP66/IP68 protection rating
- HART communication interface with 4 mA to 20 mA output signal
- Process temperature range from -40 °C to +130 °C and ambient operating temperature from -40 °C to +80 °C
- Equipped with display and pushbutton control for easy operation
- Certified with multiple declarations of conformity including EU, UK, ACMA, China-RoHS, FDA, and cCSAus
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids continuous level measurement in industrial processes
- Suitable for use in harsh environments with process pressures from -1 bar to 3 bar
- Ideal for applications requiring high accuracy and reliability in solids measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Long MTBF reduces waste and replacement frequency
- Energy efficient operation with low start-up current
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LBR-XXCSAAJHAAX Continuous Bulk Solids Level Sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications.
