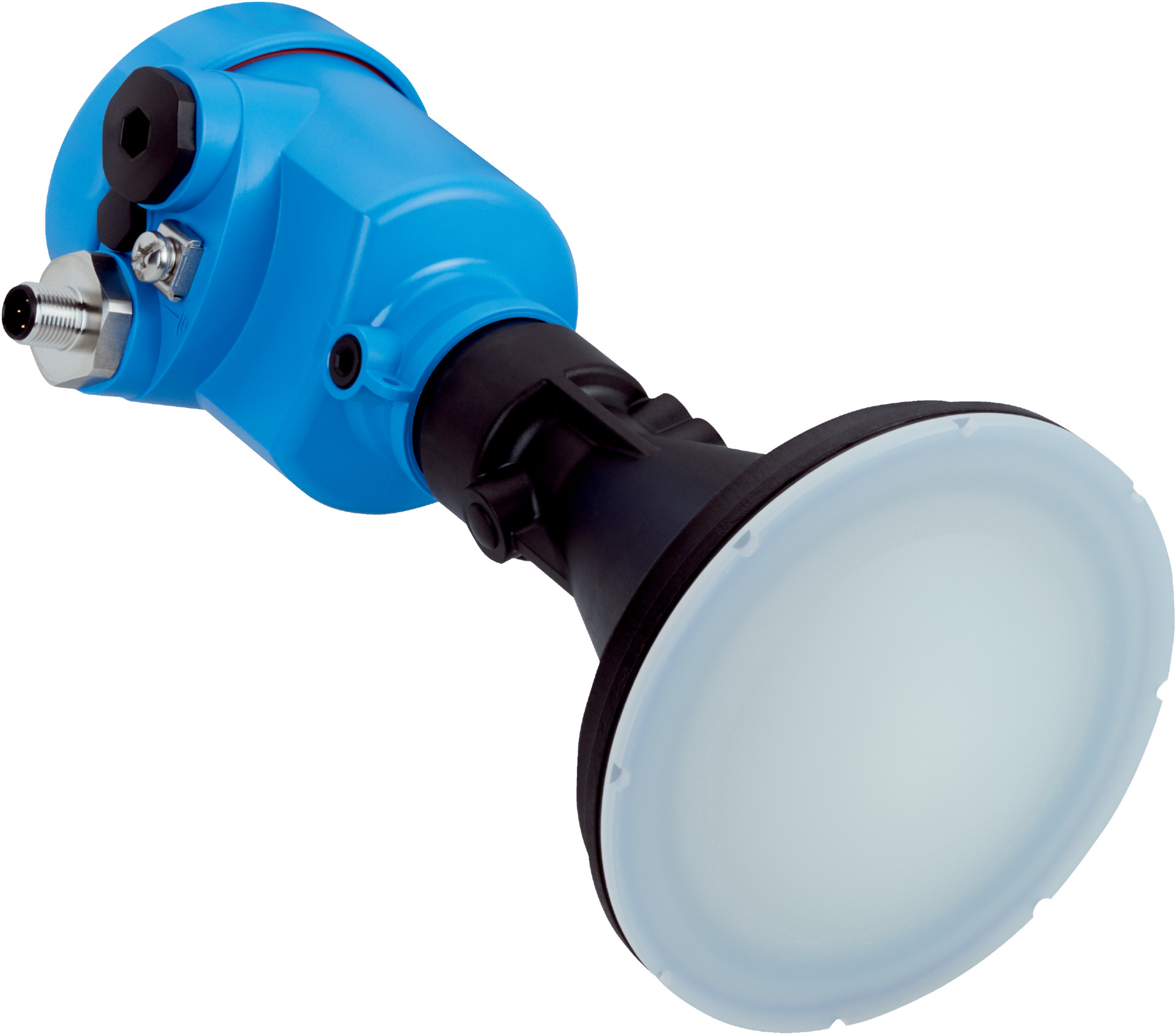

Bulk Solids Level Sensor | Continuous Measurement | W-band Frequency | IP66/IP68 Protection | by SICK
The Bulk Solids Level Sensor is designed for continuous measurement of bulk solids, utilizing W-band frequency (75-85 GHz) for high accuracy. With a robust aluminum housing and IP66/IP68 protection, it's perfect for harsh industrial environments. Ideal for monitoring material levels in storage and processing, this sensor ensures reliable performance in food contact and pharmaceutical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 300mm x 80mm x 80mm
- Weight: 3 kg
Key Features
- Continuous measurement of bulk solids using W-band frequency (75-85 GHz)
- Plastic horn antenna made from PP for reliable sensing
- Measuring range up to 120 m, recommended up to 20 m with integrated horn antenna
- High accuracy with sensor element accuracy ≤ 5 mm and non-repeatability ≤ 1 mm
- Robust aluminum single-chamber housing with IP66/IP68 protection
- HART communication interface with 4-20 mA output signal
- Wide operating temperature range from -40 °C to +80 °C
- RoHS compliant and multiple international certifications including FDA and cCSAus
- Short-circuit protection and isolation for electrical safety
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting, electrical connection, and calibration according to industrial standards.
Applications
- Bulk solids level measurement in industrial processes
- Continuous monitoring of material levels in storage and processing
- Suitable for harsh environments with process pressures from -1 to 2 bar
- Use in food contact and pharmaceutical industries due to certified materials
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable design reduces waste and replacement frequency
- Energy efficient operation with low start-up current (<3.6 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

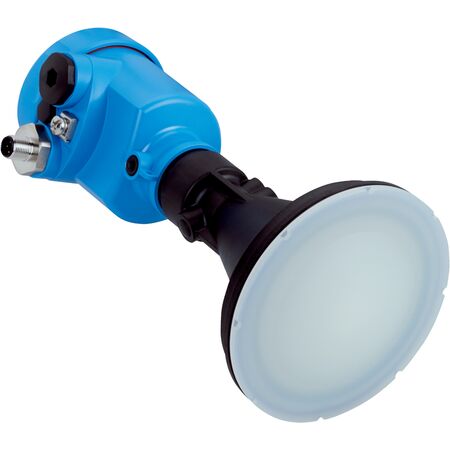

The SICK LBR-XXBXDCMHAXX level sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications requiring high accuracy and reliability.
