Bulk Solids Level Sensor | Continuous Measurement | W-band Frequency | IP67 Protection | by SICK
The Bulk Solids Level Sensor offers continuous measurement for bulk solids using W-band frequency (75-85 GHz), making it ideal for industrial processes. With a robust aluminum housing and IP67 protection, this sensor ensures reliable performance in harsh environments, perfect for storage silos and hoppers in chemical, food, and pharmaceutical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement: Continuous
- Probe type: Thread with integrated horn antenna made from PEEK
- Frequency band: W-band (75-85 GHz)
- Measuring range: Up to 120 m, recommended up to 20 m in thread version
- Angle of dispersion: 7°
- Process pressure: -1 bar to 20 bar (-100 kPa to 2000 kPa)
- Process temperature: -40 °C to +200 °C
- Accuracy of sensor element: ≤ 5 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Communication interface: HART
- Supply voltage: 9 V DC to 30 V DC
- Protection class: I (IEC 61010-1)
- Connection type: ½" NPT / cable gland PA (ø 5 mm - 9 mm)
- Output signal: 4 mA to 20 mA / HART
- Enclosure rating: IP67
- EMC: EN 61326-1
- Overvoltage category: III (IEC 61010-1)
- Process connection: Thread 1 ½'' NPT PN20, ASME B1.20.1 / 316L
- Housing material: Aluminum die cast AlSi10Mg, powder-coated
- Sealing material: FKM (SHS FPM 70C3 GLT)
- Antenna material: PEEK
- Ambient operating temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 150mm x 60mm
- Weight: 2.5 kg
Key Features
- Continuous measurement of bulk solids using W-band frequency (75-85 GHz)
- Thread with integrated horn antenna made from PEEK for reliable sensing
- Measuring range up to 120 m, recommended up to 20 m in thread version
- High accuracy with sensor element accuracy ≤ 5 mm and non-repeatability ≤ 1 mm
- Robust aluminum die cast housing with powder coating and IP67 protection
- ATEX II 1G, 1/2G, 2G Ex ia IIC T6 certified for hazardous environments
- HART communication interface with 4-20 mA output signal
- Wide process temperature range from -40 °C to +200 °C
- Display and pushbutton operation for easy configuration
- Short-circuit protection and isolation for electrical safety
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with hazardous area equipment and electrical safety standards.
Applications
- Bulk solids level measurement in industrial processes
- Continuous monitoring in storage silos and hoppers
- Process control in chemical, food, and pharmaceutical industries
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Enables precise level measurement reducing material waste
- Durable design minimizes replacement frequency and waste
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

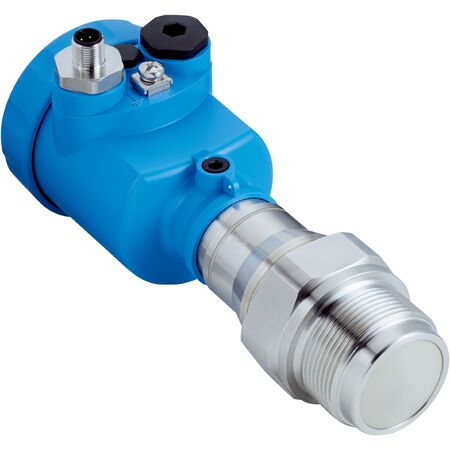

The SICK LBR-ACTTDBJHKAX level sensor is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
