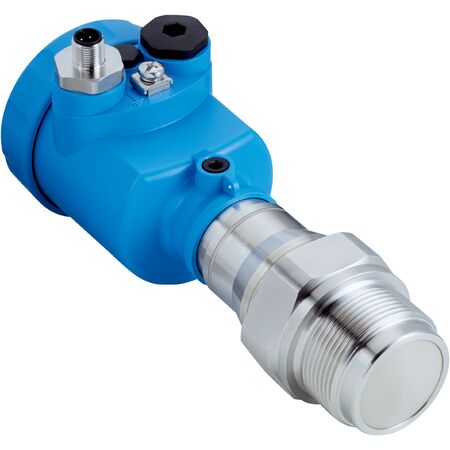

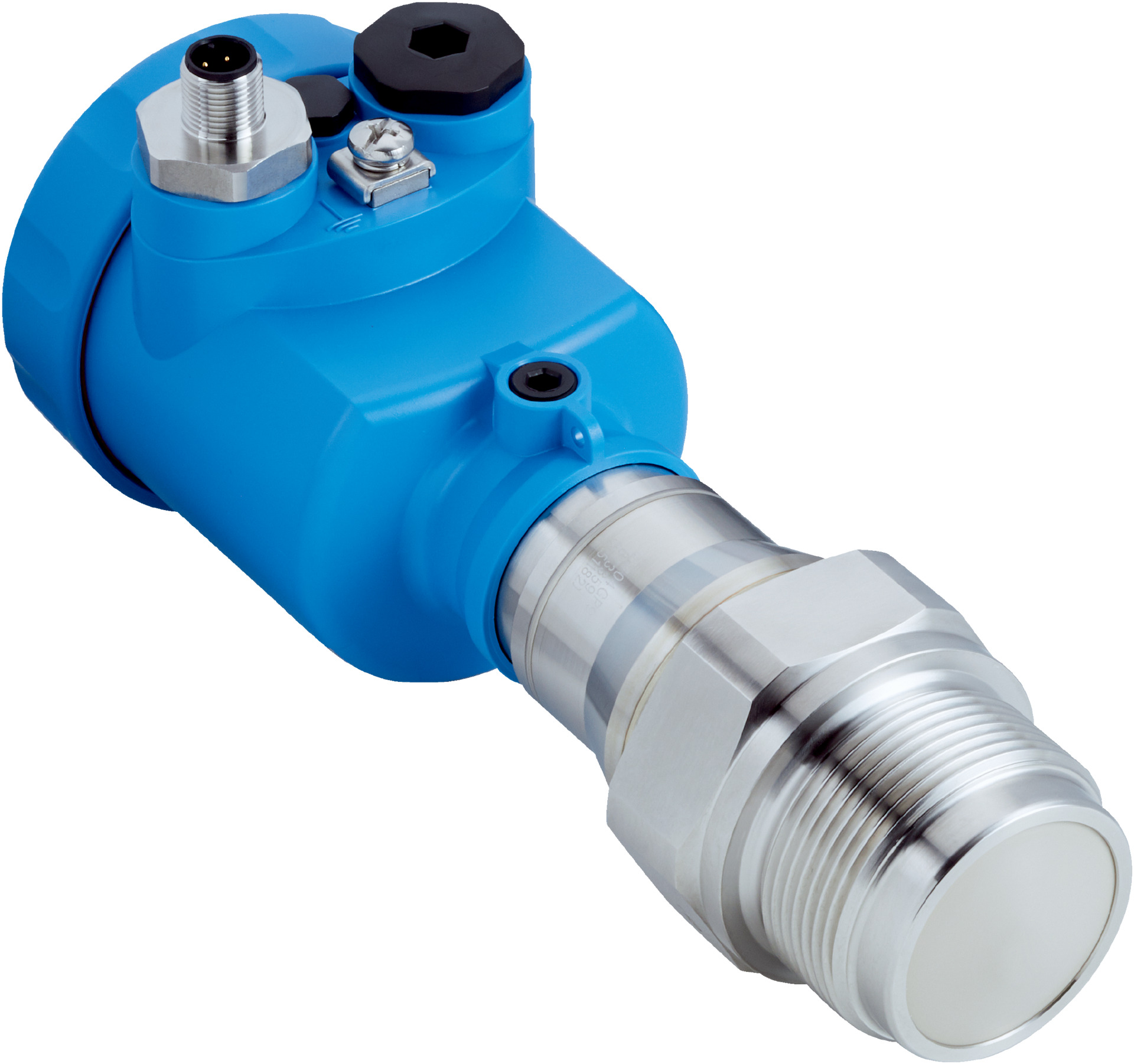

Bulk Solids Level Sensor | Continuous Measurement | W-band Frequency | IP67 Rated | by SICK
The Bulk Solids Level Sensor offers continuous measurement of bulk solids using W-band frequency (75-85 GHz), making it ideal for industrial storage and processing applications. With a robust aluminum housing and IP67 rating, it ensures durability and reliability in harsh environments. Designed for precise level monitoring in silos and hoppers, this sensor features a high accuracy of ≤ 5 mm and a wide process temperature range from -40 °C to +130 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement: Continuous
- Probe type: Thread with integrated horn antenna made from PEEK
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: Up to 120 m, recommended up to 20 m for thread version
- Angle of dispersion: 7°
- Process pressure: -1 bar to 20 bar
- Process temperature: -40 °C to +130 °C
- Accuracy of sensor element: ≤ 5 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Communication interface: HART
- Supply voltage: 9 V DC to 30 V DC
- Protection class: I (IEC 61010-1)
- Connection type: M20 x 1.5 / cable gland PA black (ø 5 mm - 9 mm)
- Output signal: 4 mA to 20 mA / HART
- Enclosure rating: IP67
- EMC: EN 61326-1
- Short-circuit protection: Yes
- Isolation: Yes
- Housing material: Aluminum die cast AlSi10Mg, powder-coated
- Sealing material: FKM (SHS FPM 70C3 GLT)
- Antenna material: PEEK
- Dimensions (H x L x W): 150mm x 200mm x 80mm
- Weight: 2.5 kg
Key Features
- Continuous measurement of bulk solids using W-band frequency (75-85 GHz)
- Probe with integrated horn antenna made from durable PEEK material
- Measuring range up to 120 m, recommended up to 20 m for thread version
- High accuracy sensor element with ≤ 5 mm precision
- Robust aluminum die cast housing with powder coating
- IP67 rated enclosure for protection against dust and water
- HART communication interface for easy integration
- Wide process temperature range from -40 °C to +130 °C
- Process pressure tolerance from -1 bar to 20 bar
- Short response time ≤ 3 seconds and high MTBF of 3.37 million hours
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor systems and electrical safety standards is recommended.
Applications
- Bulk solids level measurement in industrial storage and processing
- Continuous level monitoring in silos and hoppers
- Process control in bulk material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise material level monitoring to reduce waste and optimize resource use
- Durable design reduces need for frequent replacements, minimizing environmental impact
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now
The SICK LBR-XXTTCAMHKXX Bulk Solids Level Sensor is available for immediate purchase, ideal for industrial bulk material level monitoring applications.
