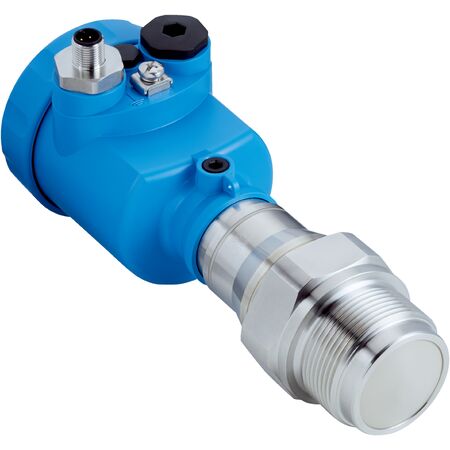

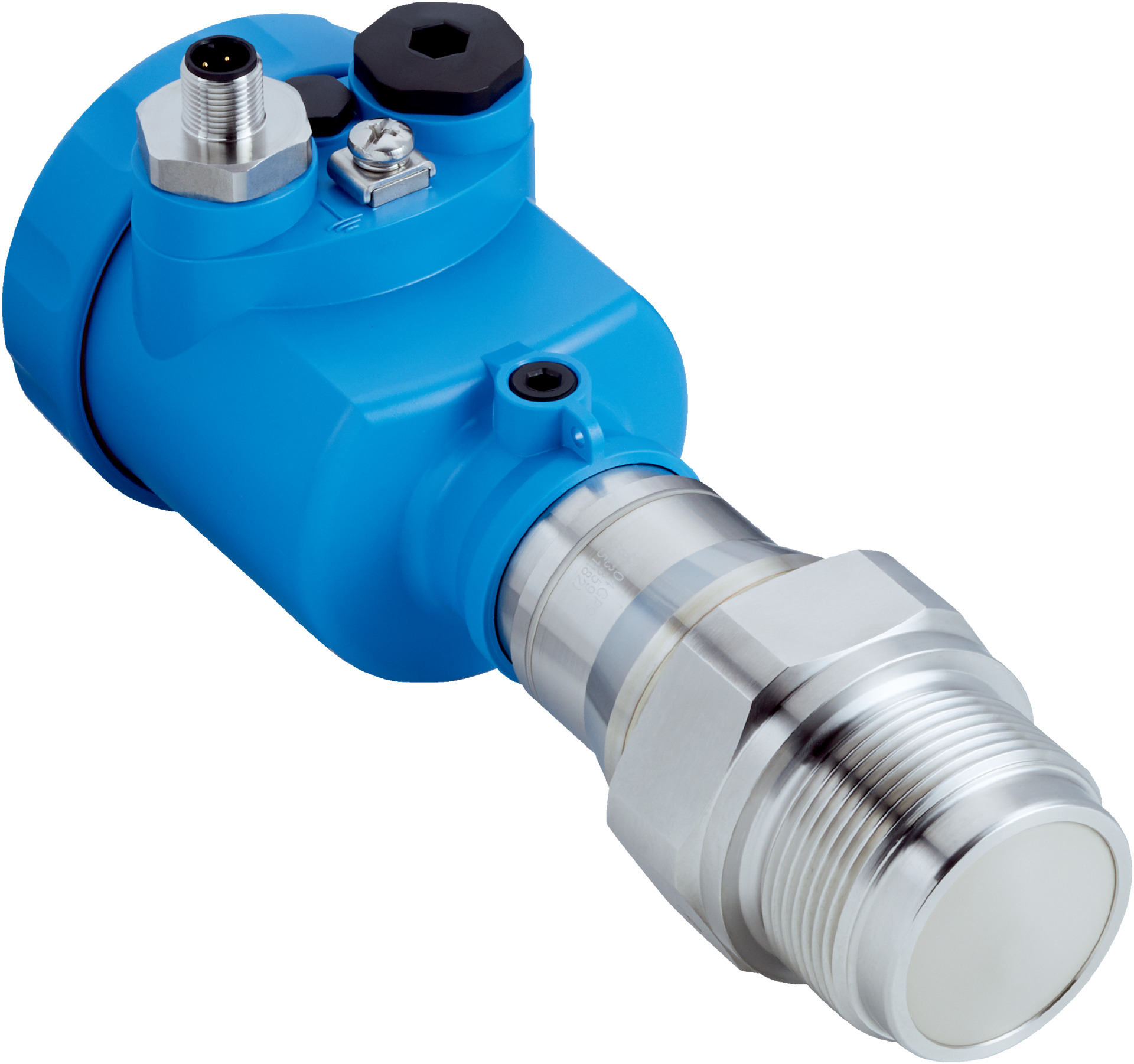

Bulk Solids Level Sensor | Continuous Measurement | W-band Frequency | IP67 Rated | by SICK
The Bulk Solids Level Sensor offers continuous measurement with high accuracy (≤ 5 mm), making it ideal for industrial processes. Designed for harsh environments, it features a W-band frequency (75 to 85 GHz) and an integrated horn antenna for precise level measurement. With an IP67 rated enclosure and ATEX approval for hazardous areas, this sensor ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 150mm x 200mm x 60mm
- Weight: 2.5 kg
Key Features
- Continuous measurement of bulk solids with high accuracy (≤ 5 mm)
- Probe type: Thread with integrated horn antenna made from PEEK
- Frequency band: W-band (75 to 85 GHz)
- Measuring range up to 120 m, recommended up to 20 m for thread version
- Process pressure range from -1 bar to 20 bar
- Process temperature range from -40 °C to +130 °C
- ATEX approved for hazardous areas (IEC Ex db IIC T6...T1, Ga/Gb, Gb)
- HART communication interface with 4 mA to 20 mA output
- IP67 rated enclosure for protection against dust and water
- Robust aluminum die cast housing with powder coating
- Integrated display and pushbutton control for easy operation
- Short-circuit protection and isolation included
Professional Installation Requirements
- Installation by qualified personnel is required, especially for compliance with hazardous area certifications and electrical safety standards.
Applications
- Continuous measurement of bulk solids in industrial processes
- Suitable for use in harsh environments with process pressures up to 20 bar
- Ideal for applications requiring precise level measurement with integrated horn antenna technology
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Long MTBF (3.37 million hours) reduces waste and replacement frequency
- Energy efficient operation with low start-up current (< 3.6 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LBR-ICTTCAMHKAX sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications.
