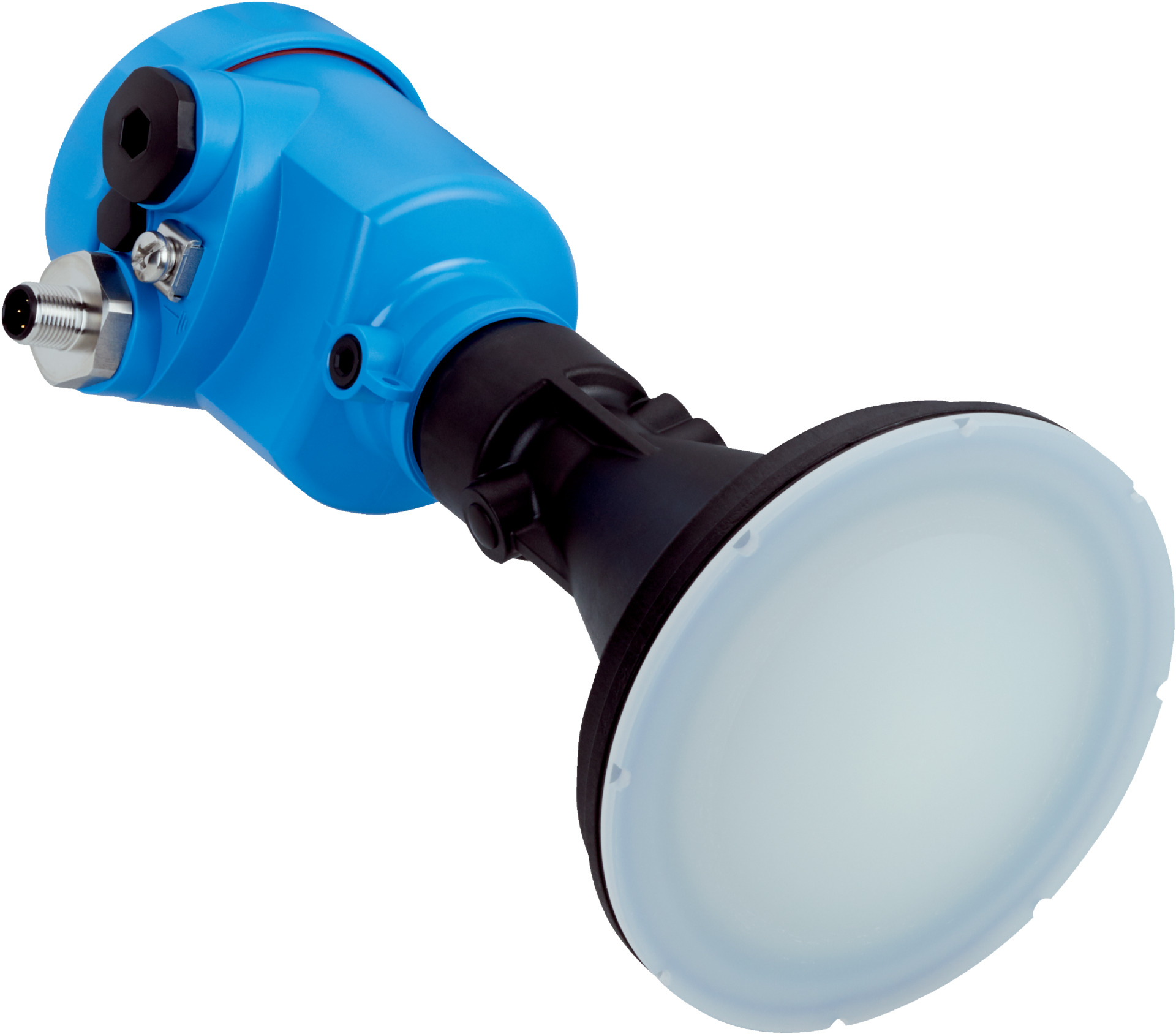

Bulk Solids Level Sensor | W-band Frequency | ATEX Approved | 120m Measuring Range | by SICK
The Bulk Solids Level Sensor is designed for continuous measurement of bulk solids in industrial processes, utilizing W-band frequency for high accuracy. With a measuring range of up to 120m and ATEX certification, it's perfect for storage silos and hoppers in hazardous areas. Built with a robust aluminum housing and IP66/IP68 protection, this sensor ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 170mm x 60mm x 60mm
- Weight: 2.5 kg
Key Features
- Continuous measurement of bulk solids using W-band frequency (75-85 GHz)
- Plastic horn antenna made from polypropylene (PP)
- Measuring range up to 120 m, recommended up to 20 m with integrated horn antenna
- Narrow angle of dispersion at 3.5° for precise measurement
- Suitable for process pressures from -1 bar to 2 bar and temperatures from -40 °C to +80 °C
- ATEX approved for use in explosive atmospheres
- High accuracy with sensor element accuracy ≤ 5 mm and non-repeatability ≤ 1 mm
- HART communication interface for easy integration
- Robust aluminum housing with IP66/IP68 protection rating
- Short-circuit protection and isolation included
Professional Installation Requirements
- Installation by qualified personnel is required, especially for hazardous area compliance and correct mounting using the M20 x 1.5 connection or mounting clamp.
Applications
- Measurement of bulk solids in industrial processes
- Continuous level measurement in storage silos and hoppers
- Use in hazardous areas with ATEX certification
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Non-contact measurement reduces wear and contamination
- Durable materials and long MTBF (3.37 million hours) reduce waste and replacement frequency
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

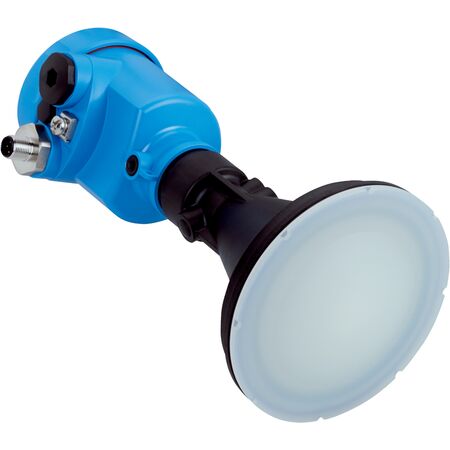

The SICK LBR-AHBXCC2HAXX level sensor is available for immediate purchase, ideal for industrial bulk solids measurement in hazardous and non-hazardous environments.
