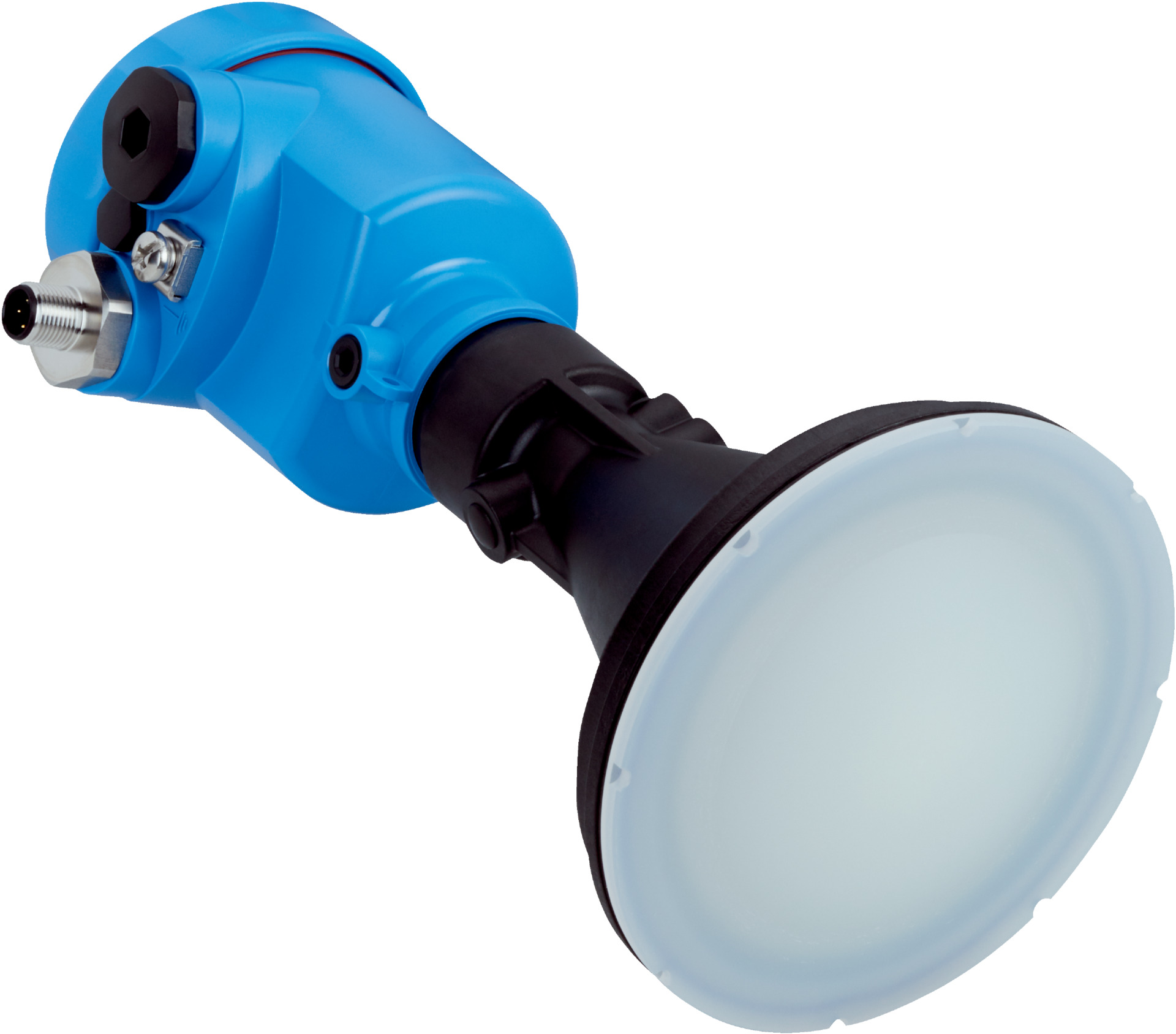

Bulk Solids Level Sensor | W-band Frequency | IP66/IP68 Protection | by SICK
The Bulk Solids Level Sensor is designed for continuous measurement of bulk materials in industrial processes, featuring a W-band frequency range of 75 to 85 GHz for precise measurement. With a robust aluminum housing and IP66/IP68 protection, it's ideal for harsh environments, ensuring high accuracy and reliability in process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 150mm x 200mm x 100mm
- Weight: 2 kg
Key Features
- Plastic horn antenna made from PP for durability
- W-band frequency range (75 to 85 GHz) for precise measurement
- Measuring range up to 120 m, recommended up to 20 m with integrated horn antenna
- High accuracy with sensor element accuracy ≤ 5 mm
- Robust aluminum single-chamber housing with IP66/IP68 protection
- ATEX certified for use in explosive atmospheres
- HART communication interface for easy integration
- Wide operating temperature range from -40 °C to +80 °C
- Short-circuit protection and isolation for safety
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety and operational standards, especially in hazardous areas.
Applications
- Continuous measurement of bulk solids in industrial processes
- Suitable for use in harsh environments with dust and pressure variations
- Ideal for process control in manufacturing and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient process control reducing material waste
- Durable materials and long MTBF (3.37 million hours) reduce replacement frequency
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

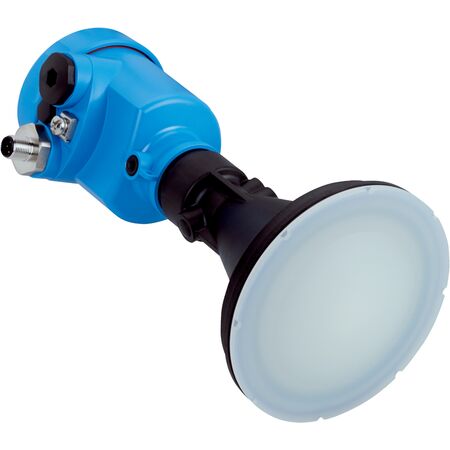

The SICK LBR-ARBXXC2HAXX sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications.
