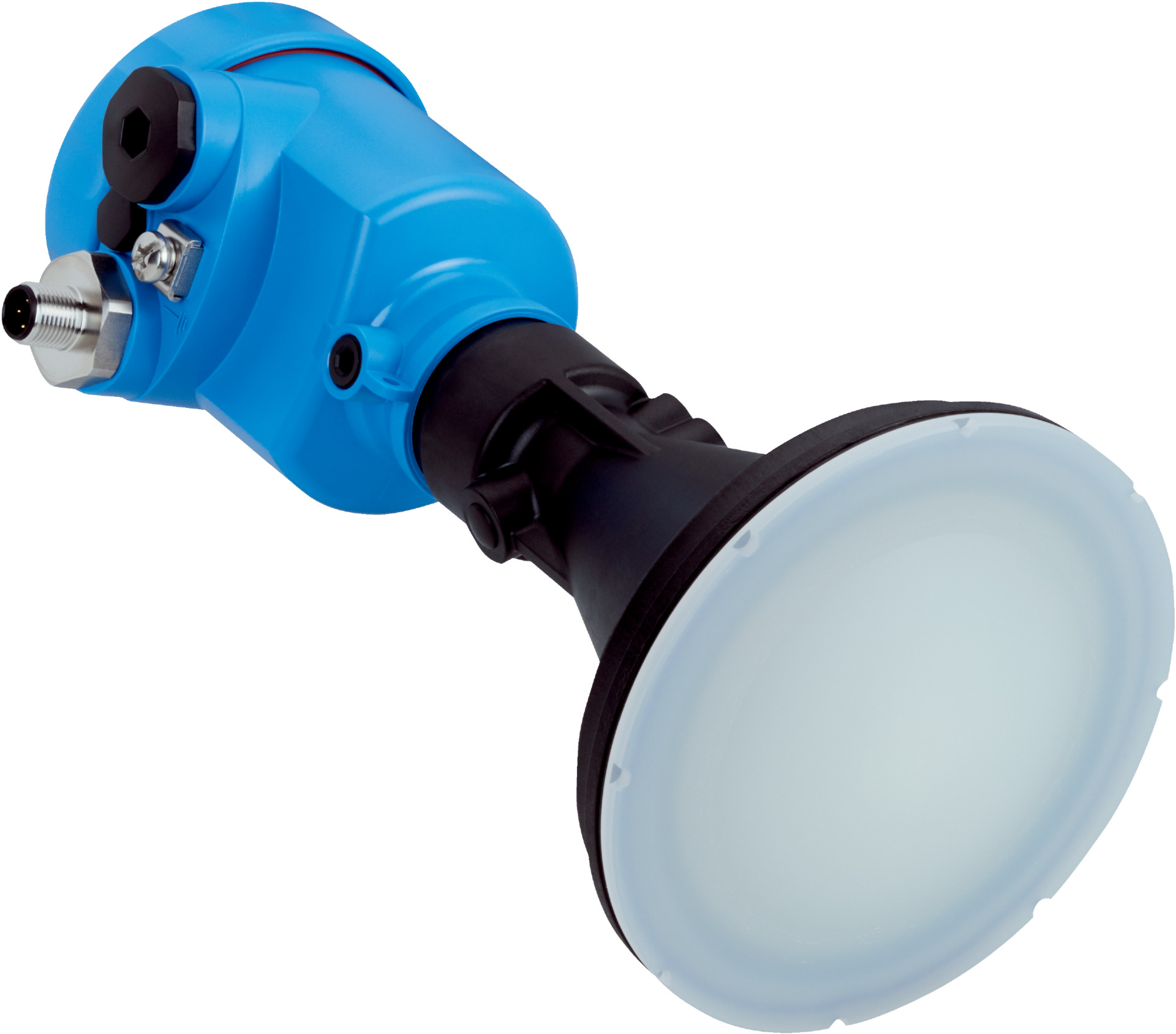

Bulk Solids Level Sensor | W-band Radar Technology | IP67 Rated | 120m Measuring Range | by SICK
The Bulk Solids Level Sensor utilizes W-band radar technology for continuous measurement of bulk solids, making it ideal for industrial processes. With a measuring range of up to 120m and an IP67 rated enclosure, it ensures reliable performance even in harsh environments. Designed for accurate monitoring, this sensor features Bluetooth operation and a built-in display for easy reading, making it perfect for material level management in storage and processing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 170mm x 50mm x 50mm
- Weight: 2 kg
Key Features
- Continuous measurement of bulk solids using W-band frequency (75-85 GHz)
- Plastic horn antenna made from polypropylene (PP)
- Measuring range up to 120 m, recommended up to 20 m with integrated horn antenna
- Angle of dispersion 3.5°
- Process pressure range from -1 bar to 2 bar
- Operating temperature range from -40 °C to +80 °C
- Bluetooth magnet pin operation for control
- HART communication interface
- Installed display for easy reading
- High accuracy with sensor element accuracy ≤ 5 mm and non-repeatability ≤ 1 mm
- IP67 rated enclosure for protection against dust and water
- Short-circuit protection and isolation included
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids level measurement in industrial processes
- Continuous monitoring of material levels in storage and processing
- Suitable for use in harsh environments with process pressures from -1 to 2 bar
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 61010-1 (IEC 61010-1) for electrical safety
Environmental Benefits
- RoHS certified ensuring restriction of hazardous substances
- Durable materials and design reduce waste and replacement frequency
- Bluetooth operation reduces need for physical interaction, lowering maintenance impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now

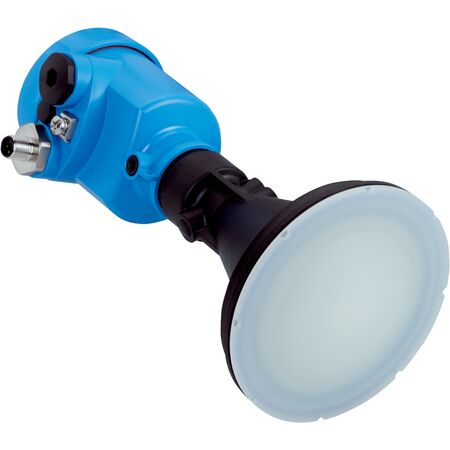

The SICK LBR-XXBXCC2HKKX level sensor is available for immediate purchase, ideal for industrial bulk solids monitoring and process control applications.
